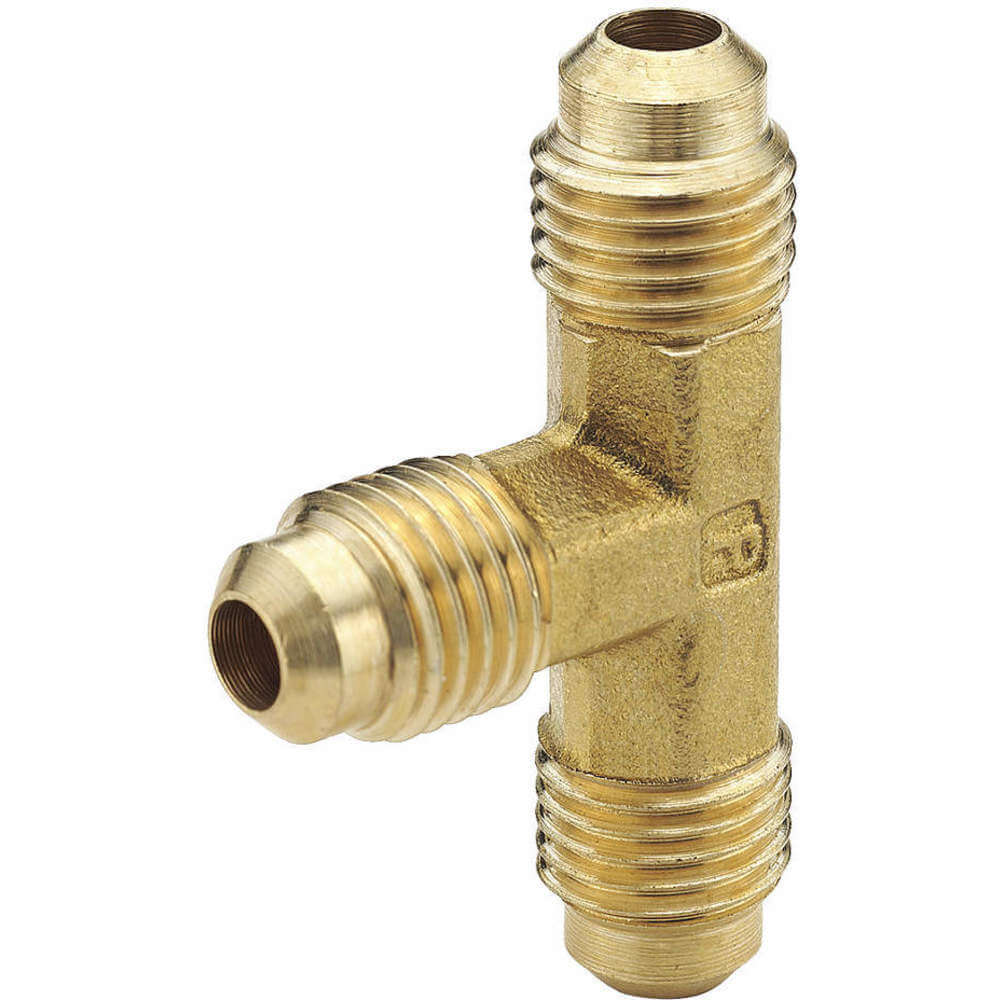

| Item | Union Tee |
| Application | Air, Flammable Liquid, Freon, Inert Gases, Non-Combustible Gases |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Tee |
| Body Material | Brass |
| Connection Type | Flare |
| Fitting Side A Connection Type | Flared |
| Fitting Side B Connection Type | Flared |
| Fitting Side C Connection Type | Flared |
| Flare Thread Size | 3/8"-24 |
| Flare Type | 45° |
| Hex Size | 0.344" |
| Material | Brass |
| Max. Operating Pressure | 2800 psi |
| Max. Pressure | 450 psi to 2800 psi |
| O-ring Material | Fluorocarbon |
| Specific Pipe Fitting Shape | Tee Union |
| Temp. Range | -65°F to +250°F |
| Tube Size | 0.188" |
| Type | Flare |
| Fitting Material | Brass |
| Fitting Side A Tube Outer Diameter | 3/16" |
| Fitting Side B Tube Outer Diameter | 3/16" |
| Fitting Side C Tube Outer Diameter | 3/16" |
| Fitting Thread Size | 3/8"-24 |
| Flare Angle | 45° |
| Maximum Operating Pressure | 2800 psi |
| Maximum Operating Temperature | 250°F |
| Minimum Operating Temperature | 65°F |
| Overall Length | 1 15/32" |
| Specific Fitting Shape | Tee |
| Standards | SAE J512, SAE J513 |
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 0.87 |
| Ship length (cm) | 3.73 |
| Ship width (cm) | 0.87 |
| HS code | 7412200035 |
| Country of Origin | US |
| Product | Model | Body Material | Connection Type | Flare Thread Size | Hex Size | Max. Pressure | Temp. Range | Tube Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
10ET10-B | Brass | A-LOK(R) x A-LOK(R) x A-LOK(R) | - | 1" | - | -40 Degrees to 400 Degrees F | 5/8" | 1 | €125.97 | |
|
10-10-10 JBZ-B | Brass | CPI(TM) x CPI(TM) x CPI(TM) | - | 1" | - | -40 Degrees to 400 Degrees F | 5/8" | 1 | €124.38 | |
 |
144F-5 | Brass | Flare | 1/2-20 | - | 450 to 2800 psi | -65 Degrees to 250 Degrees F | 5/16" | 10 | €210.21 | |
 |
12ET12-316-GR | 316 Stainless Steel | A-LOK(R) x A-LOK(R) x A-LOK(R) | - | 1-1/16'" | - | -425 Degrees to 1200 Degrees F | 3/4" | 1 | €275.04 | |
|
16ET16-316-GR | 316 Stainless Steel | A-LOK(R) x A-LOK(R) x A-LOK(R) | - | 1.375" | - | -425 Degrees to 1200 Degrees F | 1" | 1 | €627.96 | |
|
144F-4 | Brass | Flare | 7/16-20 | - | 1400 psi | -65 Degrees to 250 Degrees F | 1/4" | 10 | €64.07 | |
|
144F-6 | Brass | Flare | 5/8-18 | - | 1000 psi | -65 Degrees to 250 Degrees F | 3/8" | 10 | €140.90 |
