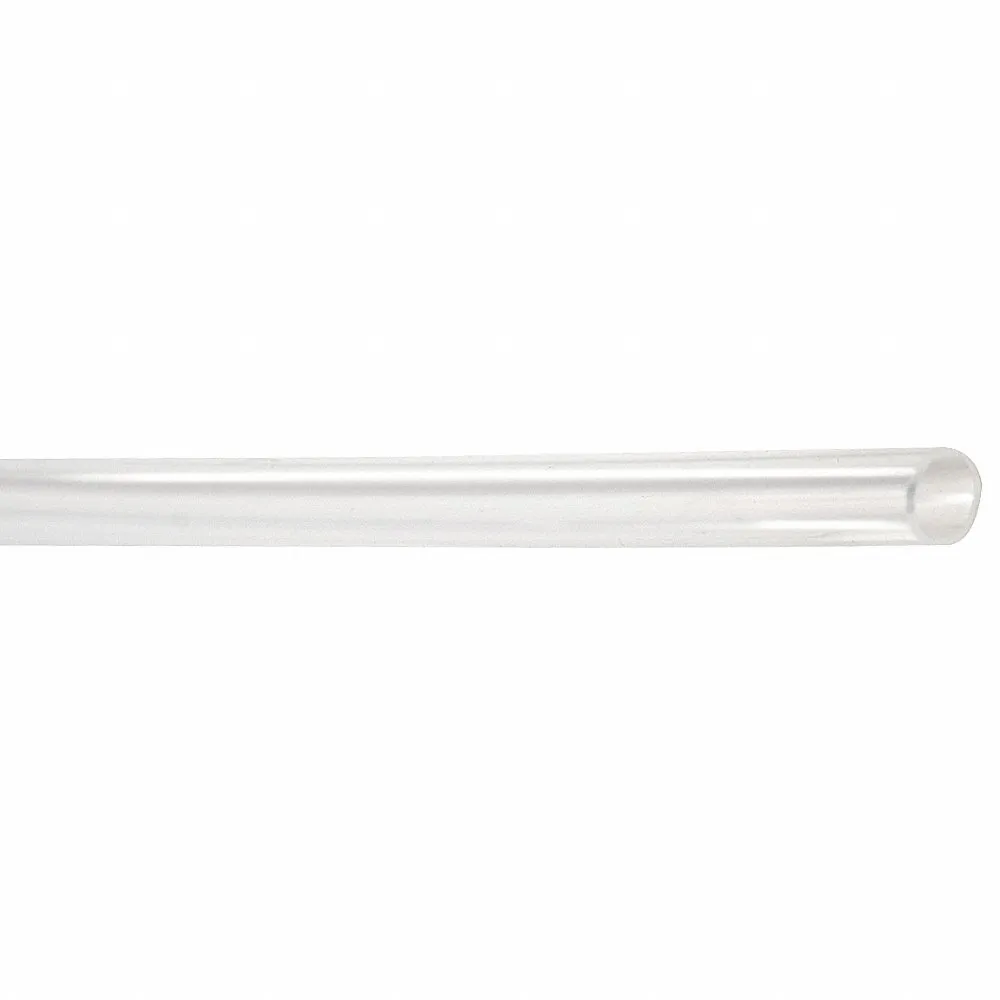

PARKER 105-0500062-NT-50 Chemical-Resistant Pfa Tubing, High Purity Pfa, Clear, 3/8 Inch Id, 1/2 Inch OD
€952.18 /unit
Request a Quote
Payment
Payment
| Item | Tubing |
| Application | Air, Beverage, Chemical, Food , Air, Beverages, Chemicals, Food |
| Bend Radius | 2 1/8" |
| Burst Pressure | 840 psi |
| Clarity | Semi Clear |
| Color | Beige , Clear |
| Features | Chemically Inert, Low Coefficient Of Friction, Low Permeability, Non Leaching, Non-Wetting, Self-Extinguishing |
| For Environment | High Temperature |
| Hardness | Shore D 55 |
| Inside Dia. | 3/8" |
| Material | High Purity PFA |
| Max. Operating Pressure | 210 psi |
| Maximum Vacuum Pressure | 28 in. hg |
| Outside Dia. | 1/2" |
| Overall Length | 50 ft. |
| Pex Type | Not Applicable |
| Resistance Properties | Heat Resistant |
| System Of Measurement | Inch |
| Tube Color | Natural |
| Tube Material | High Purity Perfluoroalkoxy |
| Vacuum Rating | Vacuum Rated |
| Wall Thickness | 0.062" |
| Inside Diameter | 3/8" |
| Maximum Operating Pressure | 210 psi @ 73°F |
| Maximum Operating Temperature | 500°F |
| Minimum Operating Temperature | -100°F |
| Outside Diameter | 1/2" |
| Standards | 21 CFR 177.1550, ASTM D3307, UL 94 V-0 COMPLIANT, USP CLASS VI |
| Vacuum Rated | Vacuum Rated |
| Weight Per Foot | 0.079 lbs.-ft. |
| Ship weight (kg) | 1.8 |
| Ship length (cm) | 1.27 |
| Ship width (cm) | 1.27 |
| Country of Origin | US |
| Product | Model | Price | |
|---|---|---|---|
|
105-0250047-NT-50 | €440.33 | RFQ
|
|
105-0750062-NT-50 | €1,627.78 | RFQ
|
 |
105-1000062-NT-50 | €2,072.99 | |
 |
104-0188031-NT-50 | €197.50 | |
|
104-0500062-NT-50 | €845.91 | |
|
104-0250047-NT-50 | €344.95 | |
|
104-0500031-NT-50 | €497.31 |
