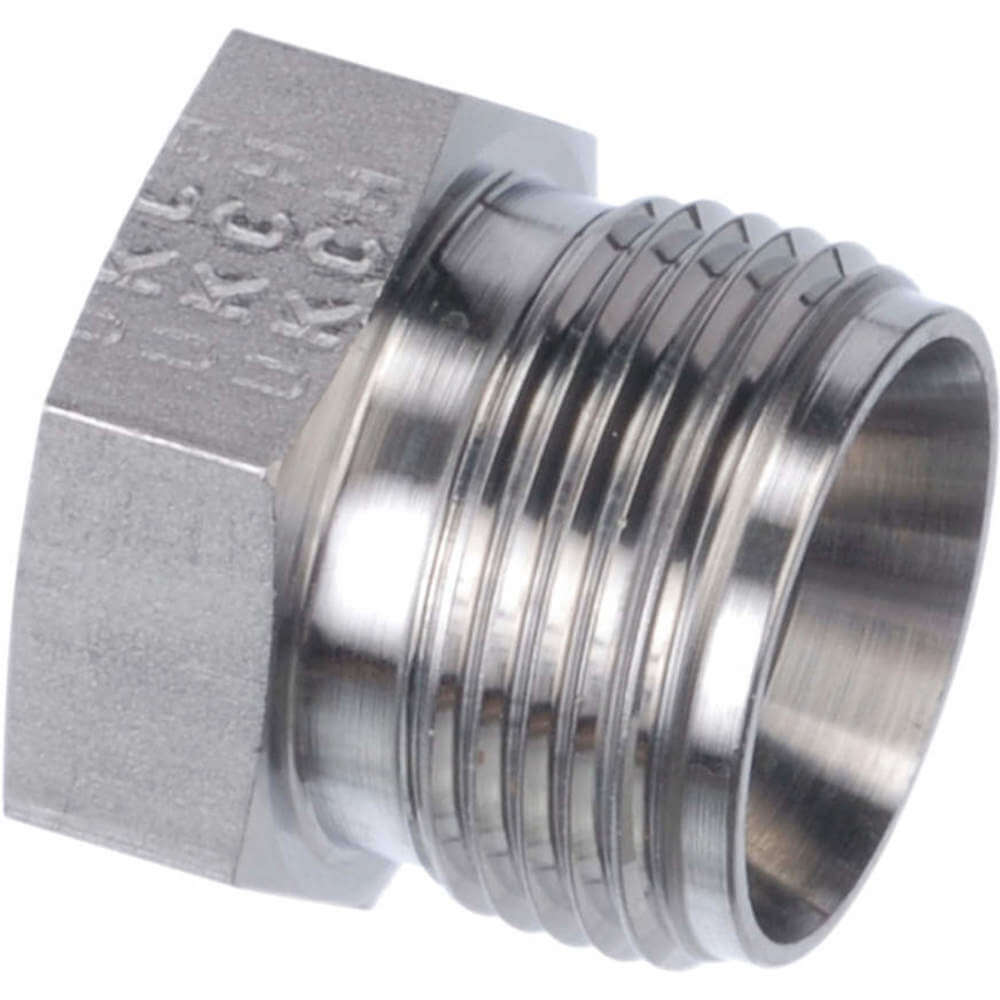

| Item | Inverted Tube Nut |
| Application | Air, Natural Gas, Non-Potable Water, Potable Water, Steam |
| Basic Material | Stainless Steel |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Nut |
| Body Material | Stainless Steel |
| Compatible Fitting Brands | Swagelok |
| Compression Thread Size | 1/16" |
| Connection Type | A LOK |
| Diameter | 0.062" |
| Hex Size | 3/8" |
| Material | Stainless Steel |
| Max. Operating Pressure | 16800 psi |
| Max. Pressure | 16800 psi |
| Specific Pipe Fitting Shape | Nut |
| System Of Measurement | Imperial |
| Temp. Range | -425°F to +1200°F |
| Tube Fitting Material | Stainless Steel |
| Tube Size | 0.062" |
| Compatible Tube Outer Diameter | 1/16" |
| Fitting Connection Type | Compression |
| Fitting Material | Stainless Steel |
| Material Grade | Grade 316 |
| Maximum Operating Pressure | 16800 psi |
| Maximum Operating Temperature | 1200°F |
| Minimum Operating Temperature | 425°F |
| Overall Length | 3/8" |
| Series | CPI |
| Specific Fitting Shape | Inverted Tube Nut |
| Standards | ASTM 31.3 |
| Thread Size | 1/16 |
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 0.95 |
| Ship length (cm) | 0.95 |
| Ship width (cm) | 0.95 |
| HS code | 7415338550 |
| Country of Origin | US |
