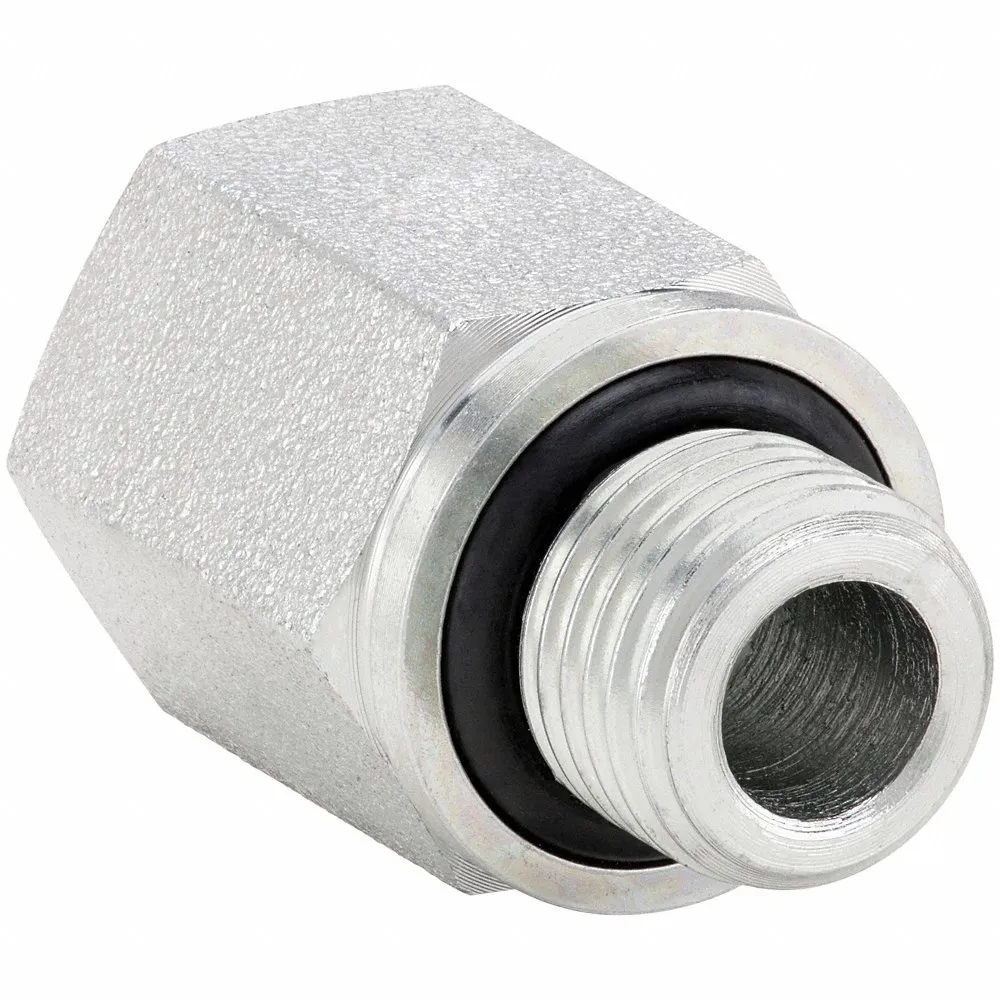

| Item | Straight Adapter |
| Application | Hydraulic Fluid |
| Basic Fitting Shape | Adapter |
| Finish/coating | Zinc Plated |
| Fitting Material | Steel |
| Fitting Side A Gender | Male |
| Fitting Side A Nominal Pipe Size | 1/4" |
| Fitting Side A Outside Diameter | 1/4" |
| Fitting Side A Type | BSPP |
| Fitting Side B Gender | Female |
| Fitting Side B Nominal Pipe Size | 1/4" |
| Fitting Side B Type | NPTF |
| Hex Size | 3/4" |
| Includes Pre-applied Thread Sealant | No |
| Includes Seal | Yes |
| Max. Operating Pressure | 5000 psi |
| Overall Length | 1 1/4" |
| Pipe Fitting Material | Steel |
| Seal Material | Nitrile |
| Specific Fitting Shape | Straight Adapter |
| Maximum Operating Pressure | 5000 psi |
| Standards | ANSI B1.20.1, ANSI B1.20.3, BS 2779, FED-STD-H28/7, FED-STD-H28/8, ISO 228-1, SAE J476 |
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 3.18 |
| Ship width (cm) | 1.91 |
| Country of Origin | CN |
| Product | Model | Price | |
|---|---|---|---|
 |
16-1 1/2 F5OG-S | €33.58 | |
 |
1-20 FHG5-S | €85.28 | |
|
16-1 1/4 F5OG-S | €21.28 | |
 |
1X1F4OHGS | €110.83 | |
|
1-16 FHG5-S | €68.30 | |
 |
1X1F3HGS | €108.58 | |
|
16-1/2 F5OG-S | €22.57 |
