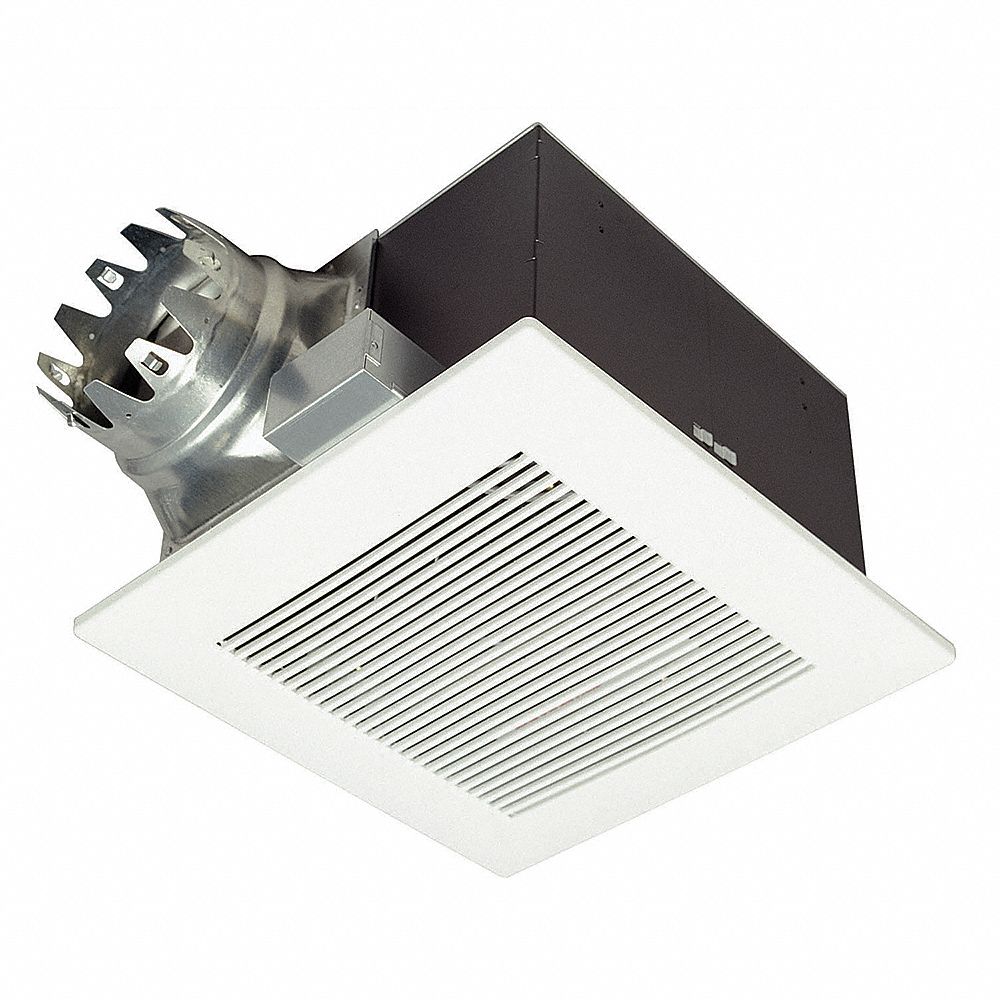

| Item | Bathroom Fan |
| Amps | 1A |
| Cfm @ 0.100-in. Sp | 380 CFM |
| Discharge | Horizontal |
| Duct Dia. | 6" |
| Frequency | 60 Hz |
| Grille Length | 17.719" |
| Grille Width | 17.719" |
| Heater | No |
| Housing Finish | Galvanized |
| Housing Height | 14.797" |
| Housing Length | 14.797" |
| Housing Material | Steel |
| Housing Width | 9.844" |
| Mounting Location | Ceiling |
| Nominal Rpm | 774 RPM |
| Phase | 1 |
| Sones @ 0.100-in. Sp @ 5 Ft. | 3 sones |
| Voltage | 120V AC |
| Wattage | 111.5 W |
| Current | 0.99A |
| Discharge Direction | Horizontal |
| Duct Shape | Round |
| Exhaust Airflow @ 0.250 In Sp | 356 CFM |
| For Cut-out Length | 14 3/4" |
| For Cut-out Width | 14 3/4" |
| For Duct Diameter | 6" |
| Grille Material | Polypropylene |
| Housing Depth | 14 3/4" |
| Includes Grill | Yes |
| Includes Light Bulbs | No |
| Lighted | Without Light |
| Maximum Exhaust Airflow @ 0.100 In Sp | 390 CFM |
| Maximum Noise Level @ 0.100 In Sp @ 5 Ft | 3 sones |
| Motor Enclosure | Totally Enclosed |
| Motor Speed | 793/874 RPM |
| Motor Type | Condenser Motor |
| Mounting Orientation | Horizontal |
| Nameplate Voltage | 120V AC |
| Noise Level @ 0.250 In Sp @ 5 Ft | 3 sones |
| Number Of Speeds | 1 |
| Profile Height Family | Medium |
| Profile Width Family | Single Wide |
| Sensor Type | None |
| Standards | ASHRAE 62.2, CALIFORNIA TITLE 24, ENERGY STAR, LEED, UL LISTED, WASHINGTON VIAQ |
| Vent Design | Ducted |
| Ship weight (kg) | 12.42 |
| Country of Origin | CN |
