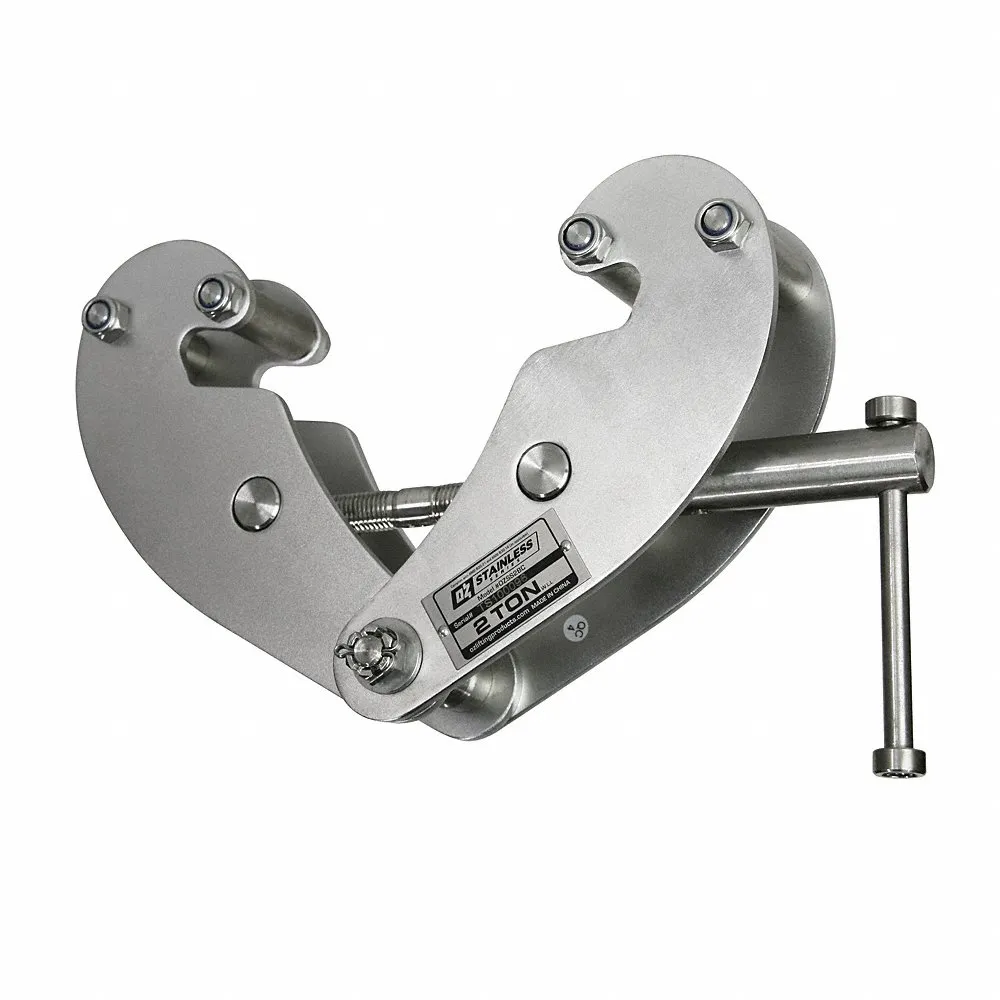

| Item | Beam Clamp |
| Jaw Capacity | 2.95 to 9.05 |
| Lifting Point | Shaft |
| Operation | Vertical Lift |
| Safe Working Load | 4000 lbs. |
| Attachment Diameter | 7/8" |
| Attachment Type | Shaft |
| Beam Mount Location | Bottom, Bottom-Center, Top |
| Clamp Type | Beam Flange Clamp |
| Compatible Beam Shape | Angled, Flat, Tapered |
| Material | 304 Stainless Steel |
| Maximum Beam Thickness | 1" |
| Maximum Beam Width | 9" |
| Maximum Jaw Opening | 9" |
| Minimum Beam Thickness | 1" |
| Minimum Beam Width | 3" |
| Minimum Jaw Opening | 3" |
| Overall Depth | 3" |
| Overall Height | 6 5/8" |
| Overall Width | 12 1/4" |
| Standards | ASME B30.16, CE AS1418.2 |
| Working Load Limit | 4000 lbs. |
| Ship weight (kg) | 4.95 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 43.18 |
| Ship width (cm) | 20.32 |
| HS code | 8425190000 |
| Country of Origin | CN |
