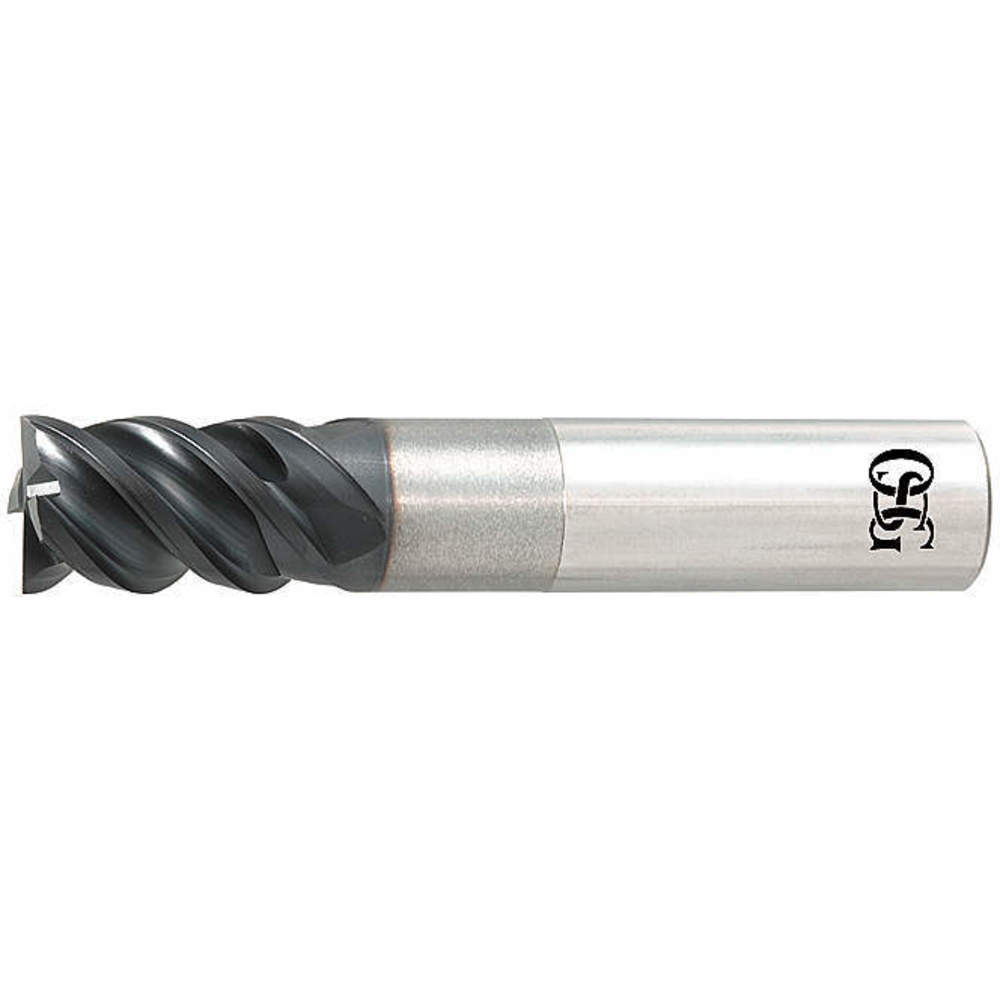

OSG HP453-4724 End Mill Square 12.0mm D 102.0mm Oal 4fl
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Carbide End Mill |
| Cast Iron (k) Compatibility | Yes |
| Cutting Direction | Right Hand |
| Cutting Direction - Machining | Right Hand |
| Cutting Length | 18 mm |
| Cutting Type | Center , Center Cutting |
| Dimension Type | Metric |
| Drilling Tool Configuration | Individual |
| End Mill Application | Roughing/Finishing |
| End Mill Style | Square |
| End Type | Single End |
| Finish | TiAlN |
| Grade | Micrograin Carbide |
| Hardened Compatibility | Yes |
| Helix Angle | 30° |
| Material | Carbide |
| Milling Dia. | 12 mm |
| Non Ferrous (n) Compatibility | No |
| Number Of Flutes | 4 |
| Overall Length | 102 mm |
| Primary Material Application Iso Code | H, K, N, P |
| Shank Dia. | 12 mm |
| Shank Type | Straight |
| Stainless (m) Compatibility | Yes |
| Steel (p) Compatibility | Yes |
| Super Alloy (s) Compatibility | No |
| System Of Measurement | Metric |
| End Mill Cutting Type | Center Cutting |
| Length Of Cut | 18 mm |
| List Number | HP453 |
| Material Grade | C2 Micrograin |
| Measurement System | Metric |
| Milling Diameter | 12 mm |
| Neck Dia. | 11.9 mm |
| Neck Length | 36 mm |
| Primary Material Application | Aluminum, Cast Iron, Hardened Steel, Steel, Tool and Die Steel |
| Shank Diameter | 12 mm |
| Single End/double End | Single End |
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 1.91 |
| HS code | 8207706030 |
| Product | Model | Dimension Type | Finish | Helix Angle | Length Of Cut | List Number | Neck Dia. | Number Of Flutes | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
20411700 | Fractional Inch | Bright | 45 Degrees | 3/8" | 2041 | - | 3 | 2.5" | €41.91 | |
|
20414900 | Fractional Inch | Bright | 45 Degrees | 5/8" | 2041 | - | 3 | 3" | - | RFQ
|
 |
20480100 | Fractional Inch | Bright | 45 Degrees | 1/4" | 2048 | 0.246" | 3 | 4" | €90.37 | |
|
20480500 | Fractional Inch | Bright | 45 Degrees | 1/2" | 2048 | 0.496" | 3 | 4" | €128.61 | |
 |
36041211 | Fractional Inch | WXL(R) | 30 Degrees | 1" | 3604 | - | 4 | 2.5" | €100.18 | |
 |
HP456-3939 | Metric | TiAlN | 30 Degrees | 15mm | HP456 | - | 4 | 80mm | - | RFQ
|
