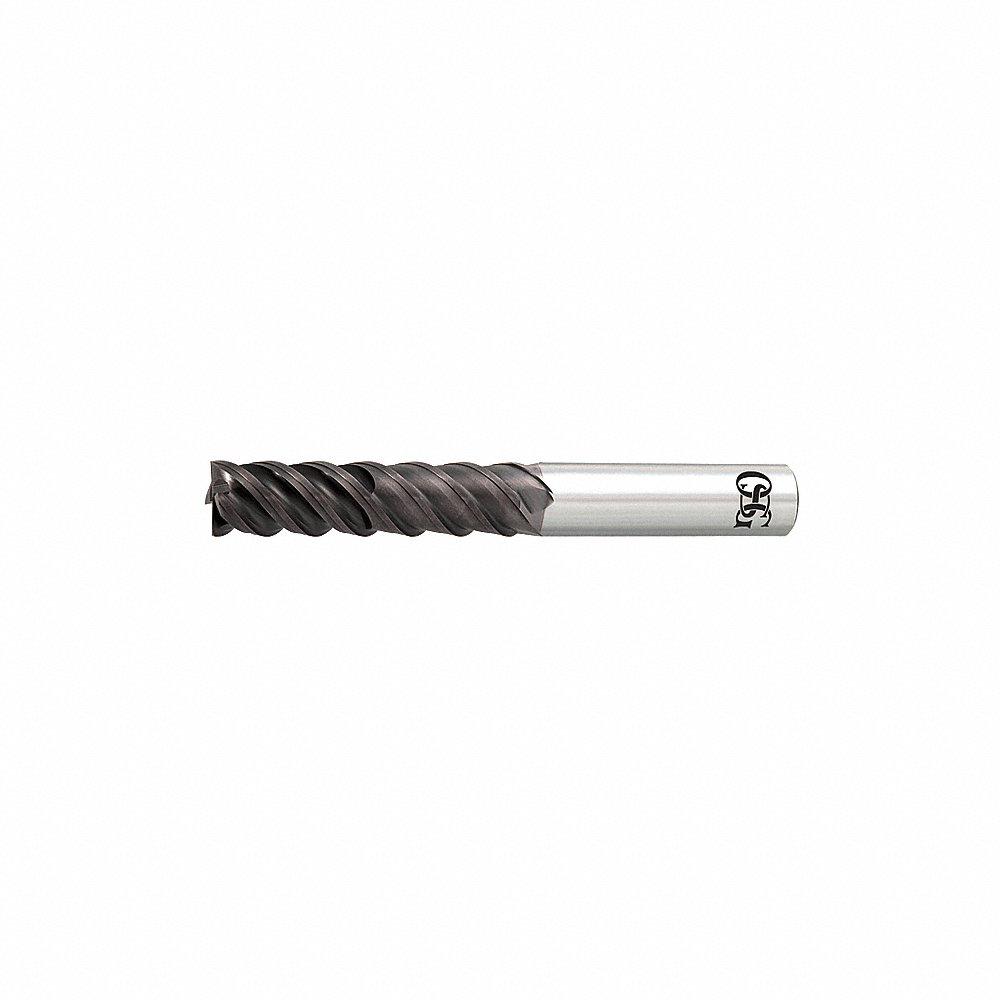

| Item | Square End Mill |
| Cast Iron (k) Compatibility | Yes |
| Cutting Direction | Right Hand |
| Cutting Direction - Machining | Right Hand |
| Cutting Length | 25 mm |
| Cutting Type | Center Cutting |
| Dimension Type | Metric |
| Drilling Tool Configuration | Individual |
| End Mill Application | Roughing/Finishing |
| End Mill Style | Square |
| End Type | Single End |
| Finish | Titanium Aluminum Nitride Coat |
| Grade | General Purpose |
| Hardened Compatibility | Yes |
| Helix Angle | 50° |
| Material | Carbide |
| Material Grade - Machining | General Purpose |
| Milling Dia. | 10 mm |
| Non Ferrous (n) Compatibility | No |
| Number Of Flutes | 4 |
| Overall Length | 80 mm |
| Primary Material Application | Aluminum, Cast Iron, Hardened Steel, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | H, K, N, P |
| Shank Dia. | 10 mm |
| Shank Type | End Mill , Straight |
| Stainless (m) Compatibility | Yes |
| Steel (p) Compatibility | Yes |
| Super Alloy (s) Compatibility | No |
| System Of Measurement | Metric |
| End Mill Cutting Type | Center Cutting |
| Length Of Cut | 25 mm |
| List Number | HP451 |
| Material Grade | General Purpose |
| Measurement System | Metric |
| Milling Diameter | 10 mm |
| Shank Diameter | 10 mm |
| Single End/double End | Single End |
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Price | |
|---|---|---|---|
 |
84400623 | €97.25 | |
 |
20224500 | €98.94 | |
 |
20231700 | €503.41 | |
 |
20241700 | €525.04 | |
 |
HP410-0394 | €41.36 | |
 |
8502010 | €60.66 | |
|
HP410-0551 | €48.21 |
