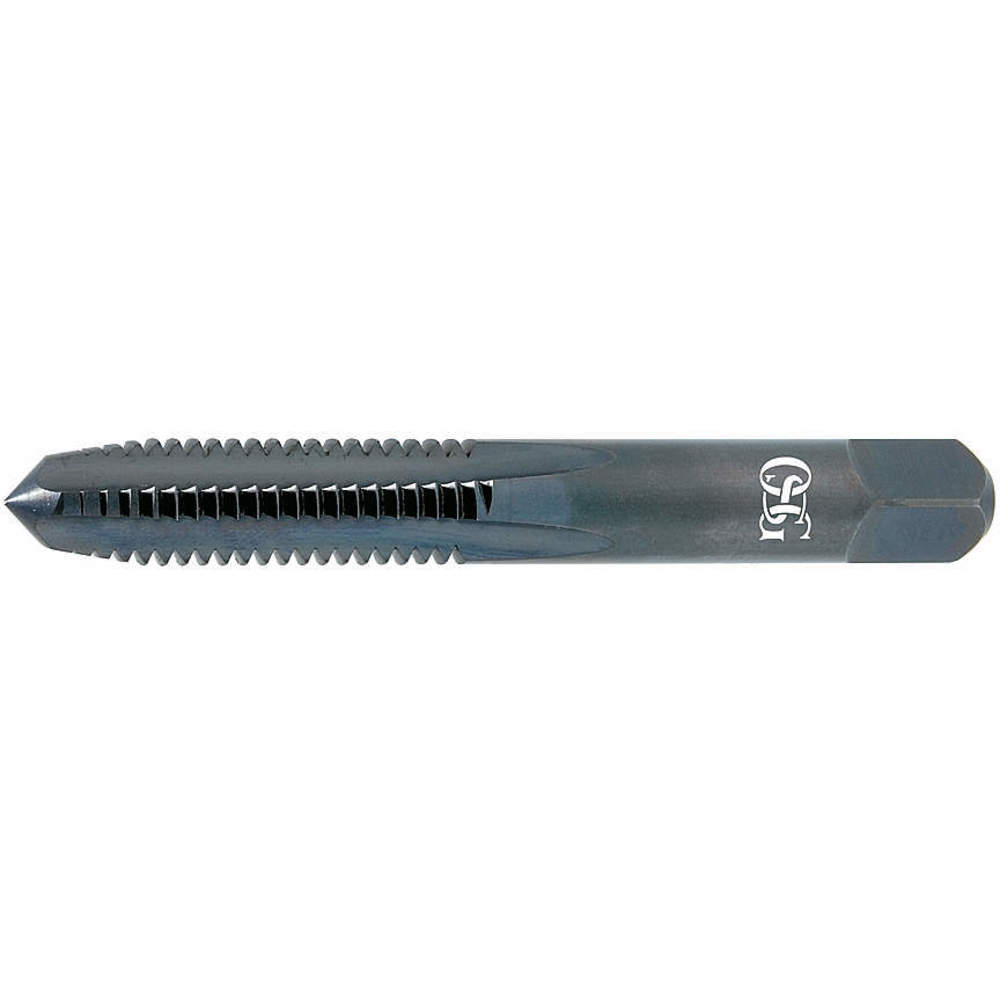

| Item | Straight Flute Tap |
| Finish | Bright |
| List Number | 121 |
| Material | High Speed Steel |
| Number Of Flutes | 4 |
| Overall Length | 70 mm |
| Pitch Diameter Limits | 2 |
| Pitch Type | 1 mm |
| Shank Dia. | 6.5 mm |
| Size | M12 |
| Tap Type | Taper |
| Thread Direction | Right Hand |
| Thread Length | 30 mm |
| Thread Type | Metric Fine |
| 55% Thread Drill Size | 11.25 mm |
| 65% Thread Drill Size | 7/16" |
| 75% Thread Drill Size | 11 mm |
| Coolant Fed | Non Coolant Through |
| Extended Neck | Yes |
| Measurement System | Metric |
| Primary Material Application | All Materials |
| Primary Material Application Iso Code | H, K, M, N, O, P, S |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Secondary Material Application Iso Code | K, N, P |
| Shank Length | 34 mm |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 6.5 mm |
| Tap Chamfer | Taper |
| Tap Finish | Bright (Uncoated) |
| Tap Length Standard | JIS |
| Tap Material | High Speed Steel |
| Tap Shank Standard | JIS |
| Tap Style | Straight Flute (Hand) |
| Thread Limit | JIS 2 |
| Thread Limit / Class Of Fit | JIS 2 |
| Thread Pitch | 1 mm |
| Thread Size | M12 x 1 |
| Thread Standard | Metric Fine |
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 1.91 |
| HS code | 8207406000 |
| Product | Model | Item | List Number | Number Of Flutes | Overall Length | Pitch | Pitch Diameter Limits | Shank Dia. | Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1009400 | Straight Flute Tap | 101H | 4 | 3.375" | 13 | +0.005 | 0.275" | 1/2" | €37.39 | |
|
1013800 | Straight Flute Tap | 102 | 3 | 2" | 32 | H2 | 0.11" | #6 | €11.93 | |
 |
1068400 | Straight Flute Tap | 104 | 2 | 2.125" | 32 | H2 | 0.131" | #8 | €14.37 | |
|
1141400 | Straight Flute Tap | 101 | 4 | 2 15/16" | 16 | H5 | 0.286" | 3/8" | €17.92 | |
|
1146100 | Straight Flute Tap | 101 | 4 | 5.125" | 8 | H6 | 0.6" | 1" | €158.04 | |
 |
1202400 | Spiral Point Tap | 105 | 2 | 2" | 32 | H1 | 0.11" | #6 | €16.84 | |
 |
1205700 | Spiral Point Tap | 105B | 2 | 1.75" | 56 | H2 | 0.11" | #2 | €35.29 |
