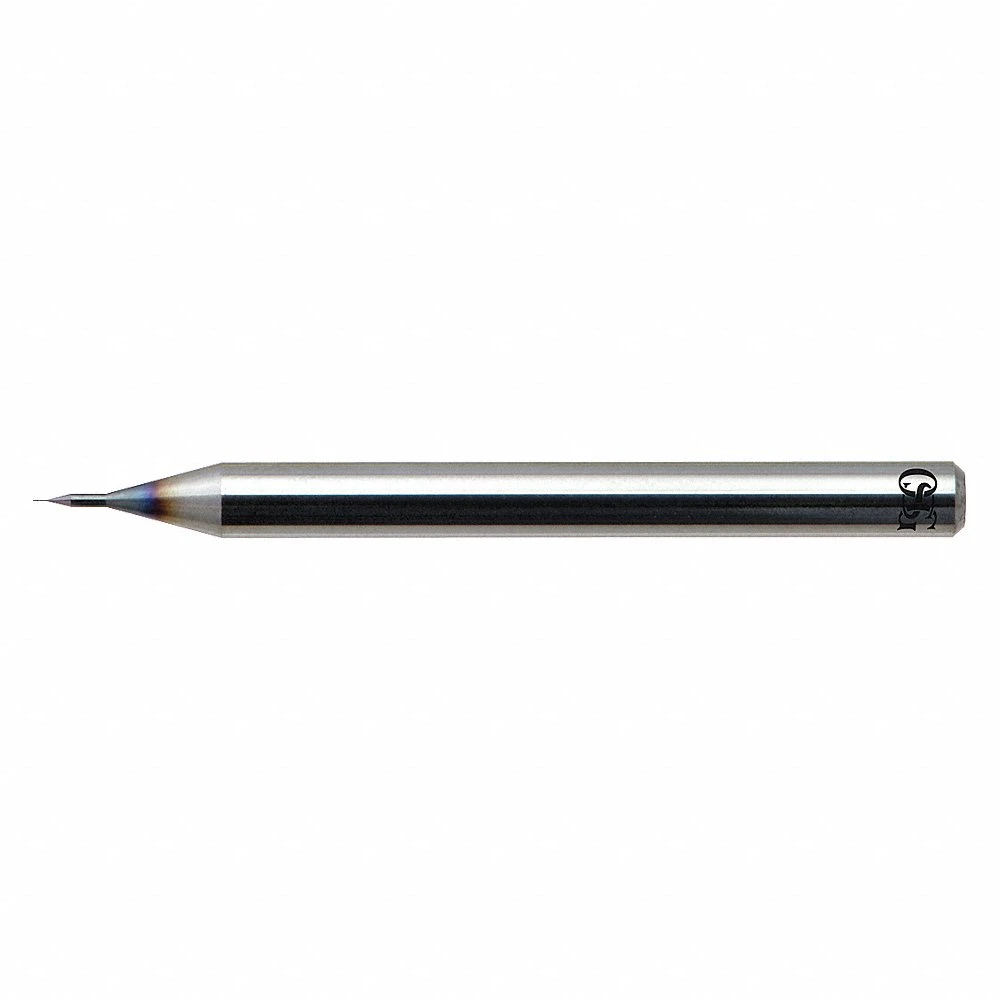

| Item | Micro Drill Bit |
| Aircraft Drill | No |
| Circuit Board Drill | No |
| Coolant Fed | Non Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.0012 |
| Depth X Dia. Ratio | 10xd |
| Dimension Type | Metric |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Super Smooth |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 120° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 0.03 mm |
| Drill Diameter Tolerance | -0.003 mm to 0 mm |
| Drill Length Class | Micro Length |
| Finish | Stainless Steel Coat |
| Flute Length | 0.33 mm |
| Flute Type | Spiral |
| Helix Angle | 30° |
| List Number | 5325 |
| Material | Carbide , Solid Carbide |
| Max. Drilling Depth | 0.33 mm |
| No. Of Pieces | 1 |
| Number Of Flutes | 2 |
| Overall Length | 38 mm |
| Primary Material Application | Hardened Steel, Nickel, Stainless Steel |
| Primary Material Application Iso Code | H, M, S |
| Secondary Material Application | Aluminum, Hardened Steel, Titanium |
| Secondary Material Application Iso Code | H, N, S |
| Shank Dia. | 3 mm |
| Shank Length | 37.67 mm |
| Shank Type | Straight |
| System Of Measurement | Metric |
| Depth:dia. Ratio | 10xD |
| Finish - Machining | SS-Coated |
| Material - Machining | Carbide |
| Maximum Drilling Depth | 0.33 mm |
| Measurement System | Metric |
| Shank Type - Machining | Straight |
| Standards | NOT RATED |
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
