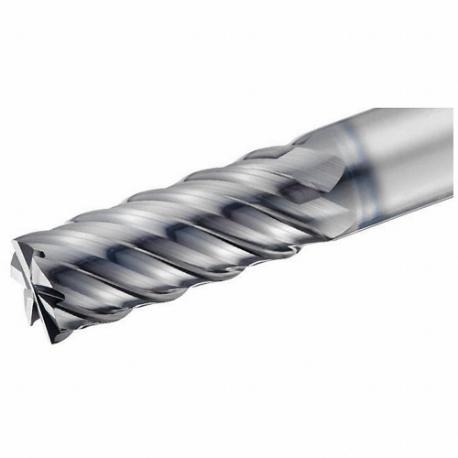

| Item | Square End Mill |
| Coolant Fed | Non Coolant Through |
| Cutting Length | 3.8 mm |
| Cutting Type | Center Cutting |
| End Mill Style | Square |
| Finish | Durorey |
| Helix Angle | 43° |
| List Number | 8540 |
| Material | Carbide |
| Material Application | Alloy Steel, Aluminum, Carbon Steel, Die Steel, Hardened Steel, Nickel Alloy, Stainless Steel, Titanium |
| Milling Dia. | 1.5 mm |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 4 |
| Overall Length | 60 mm |
| Primary Material Application | Alloy Steel, Die Steel, Hardened Steel |
| Primary Material Application Iso Code | H, P |
| Secondary Material Application | Hardened Steel |
| Secondary Material Application Iso Code | H |
| Shank Dia. | 6 mm |
| Shank Type | Shrink Fit |
| System Of Measurement | Metric |
| End Mill Cutting Type | Center Cutting |
| For Material Hardness | 35 HRC to 45 HRC, 45 HRC to 50 HRC, 50 HRC to 70 HRC, ~35 HRC |
| Length Of Cut | 3.8 mm |
| Material Applications | Alloy Steel, Aluminum, Carbon Steel, Die Steel, Hardened Steel, Nickel Alloy, Stainless Steel, Titanium |
| Measurement System | Metric |
| Milling Diameter | 1.5 mm |
| Neck Length | 0.5118" |
| Shank Diameter | 6 mm |
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Price | |
|---|---|---|---|
 |
84400623 | €97.25 | |
 |
20224500 | €98.94 | |
 |
20231700 | €503.41 | |
 |
20241700 | €525.04 | |
 |
HP410-0394 | €41.36 | |
 |
8502010 | €60.66 | |
|
HP410-0551 | €48.21 |
