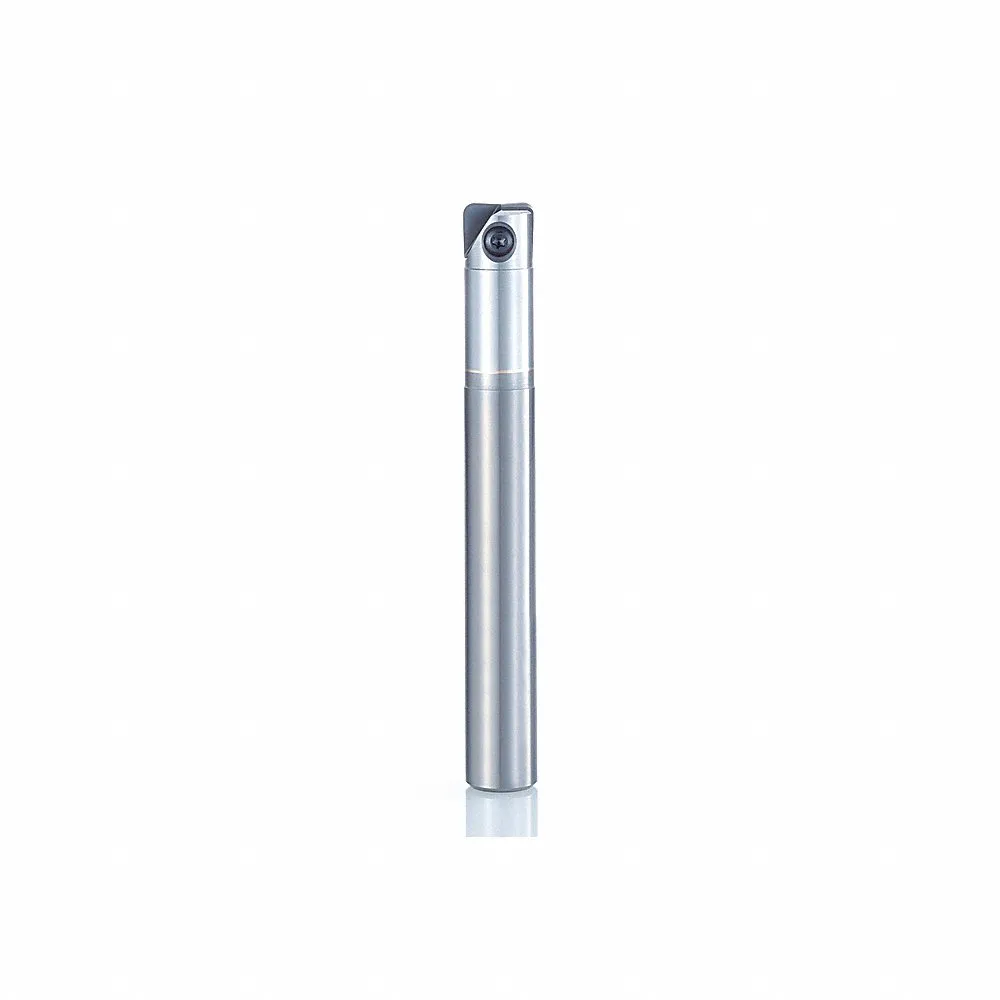

| Item | End Mill |
| Ansi Code | PFR-R200SS20-S160CS |
| Compatible Hardware | Clamping Screw, Wrench |
| Coolant Fed | Non Coolant Through |
| Cutting Application | Surface Finish |
| Cutting Direction | Right Hand |
| Features | End Mill Style, Inch And Metric, Spiral Cutting Edge, Steel And Carbide Tool Shanks, Very High Insert Diameter (+0 / -20Žå“M) And Corner Radius Precision (±8Žå“M) |
| Head Dia. | 20 mm |
| Includes | 7808117 Clamping Screw Fs30686Rb (Torx 8), 7808118 Clamping Screw Fs35610Rb (Torx 10), 7808119 Clamping Screw Fs40613Rb (Torx 15), 7808120 Clamping Screw Fs50615Rb (Torx 20), 7808121 Clamping Screw Fs60620Rb (Torx 20), 7808122 Clamping Screw Fs80624Rb (Torx 30), 7808123 Clamping Screw Fs25669Rb (Torx 7), 7808124 Clamping Screw Fs20652Rb (Torx 6), 7808203 Wrench T6-D (Torx 6), 7808204 Wrench T7-D (Torx 7), 7808205 Wrench T8-D (Torx 8), 7808207 Wrench T10-D (Torx 10), 7808208 Wrench T15-D (Torx 15), 7808209 Wrench T20-D (Torx 20), 7808212 Wrench T30-T (Torx 30) |
| Insert Holding Type | Clamping Screw |
| Material | Carbide |
| Max. Cutting Dia. | 20 mm |
| Mfr. Series | 78003 Series |
| Min. Cutting Dia. | 20 mm |
| Neck Dia. | 19.5 mm |
| Number Of Inserts | 2 |
| Overall Length | 160 mm |
| Shank Dia. | 20 mm |
| Shank Length | 110 mm |
| Shank Type | Straight |
| Toolholder Style | PFR |
| Material - Machining | Carbide |
| Series | 78003 Series |
| Shank Type - Machining | Straight |
| Ship weight (kg) | 0.64 |
