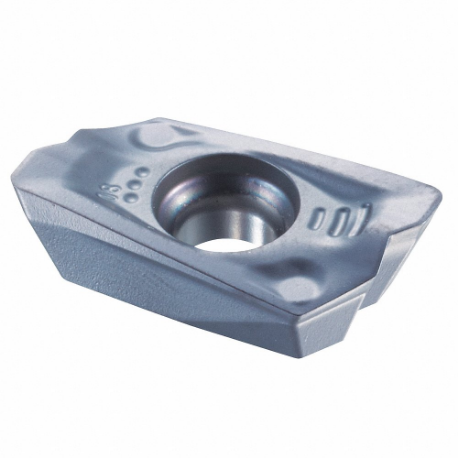

| Item | Milling Insert |
| Cast Iron (k) Compatibility | No |
| Chip-breaker | Yes |
| Chip-breaker Code | HR |
| Clearance Angle | 15° |
| Coating | PVD |
| Compatibility | No |
| Corner Radius | 0.8 mm |
| Countersink Hole Angle | 40° to 60° |
| Cutting Application | Finishing |
| Cutting Direction | Right Hand |
| Cutting Edge Length | 11 mm |
| Features | Composed Of A Tough High-Strength Carbide Material With A Wear Resistant Coating |
| For Toolholder | PSE11R016SF8-2, PSE11R017SF8-2, PSE11R018SF8-2, PSE11R020SF10-3, PSE11R021SF10-3, PSE11R022SF10-3, PSE11R025SF12-4, PSE11R026SF12-3, PSE11R028SF12-4, PSE11R032SF16-5, PSE11R033SF16-3, PSE11R035SF16-5, PSE11R040SF16-6, PSE15R025SF12-2, PSE15R026SF12-2, PSE15R028SF12-2, PSE15R032SF16-3, PSE15R033SF16-3, PSE15R035SF16-3, PSE15R040SF16-4 |
| For Use With | Indexable Ballnose End Mills |
| Hardened Compatibility | Yes |
| Hole Type | Countersink Hole |
| Inscribed Circle | 6.8 mm |
| Insert Application | Finishing |
| Insert Holding Type | Screw |
| Insert Size | 11T308 |
| Lead Angle | 3° |
| Material | Carbide |
| Mounting Style | Screw |
| No. Of Edges | 2 |
| Non Ferrous (n) Compatibility | Yes |
| Number Of Cutting Edges | 2 |
| Primary Material Application | Hardened Steel, Steel |
| Primary Material Application Iso Code | H, P |
| Secondary Material Application | Cast Iron, Steel |
| Secondary Material Application Iso Code | K, P |
| Shape | Parallelogram |
| Stainless Compatibility | Yes |
| Super Alloy Compatibility | No |
| System Of Measurement | Metric |
| Thickness | 3.8 mm |
| Width | 6.8 mm |
| Workpiece Compatibility | Hardened, Nonferrous, Stainless Steel, Steel |
| Ansi Code | ZDKT11T308SR-HR |
| Coating Process | PVD |
| Finish - Machining | TiAlN |
| Insert Style | ZDKT |
| Iso Number | ZDKT11T308SR-HR |
| Manufacturer Grade | XP6015 |
| Material - Machining | Carbide |
| Measurement System | Metric |
| Series | 78PSE Series |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
