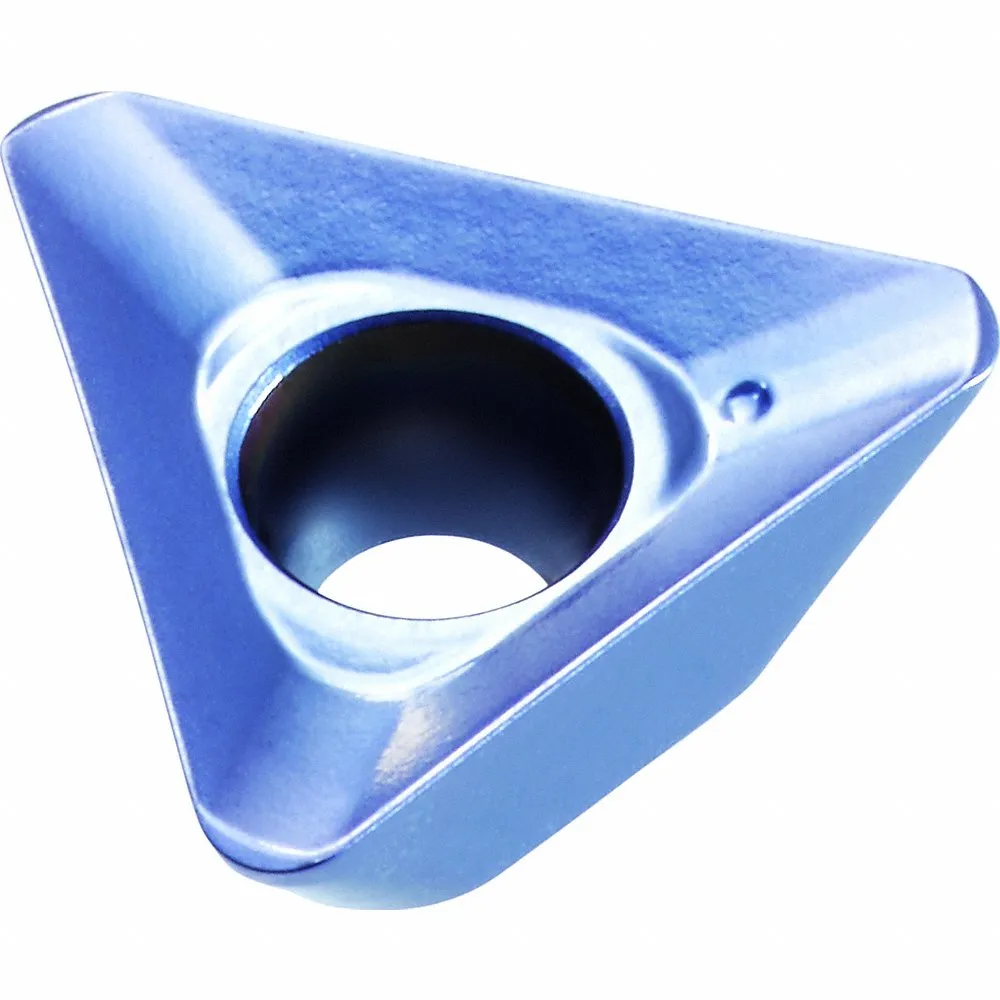

| Item | Indexable Insert Drill |
| Ansi Number | TPKT110308ER |
| Chip-breaker | Yes |
| Clearance Angle | 11° |
| Corner Radius | 0.8 mm |
| Cutting Application | Spot Drilling |
| Features | Highly Rigid Negative Chamfer Tip |
| Inscribed Circle | 1/4" |
| Insert Holding Type | Screw Clamp |
| Insert Inscribed Circle | 1/4" |
| Insert Size | 110308 |
| Insert Type | TPKT |
| Measurement System | Fractional Inch |
| Mounting Style | Screw Clamp |
| No. Of Cutting Edges | 3 |
| Number Of Cutting Edges | 3 |
| Primary Material Application | Hardened Steel, Heat-Resistant Alloy, Stainless Steel |
| Primary Material Application Iso Code | H, M, S |
| Rake | Negative |
| Secondary Material Application | Nonferrous Metal, Steel |
| Secondary Material Application Iso Code | N, P |
| Shape | Triangle |
| Thickness | 1/8" |
| Ansi Code | TPKT110308ER |
| Chip-breaker Code | DM |
| For Toolholder | PLDS11R002SS16 |
| For Use With | Indexable Centering And Chamfering Cutter |
| Insert Style | TPKT |
| Manufacturer Grade | XP2040 |
| Country of Origin | Luxembourg |
