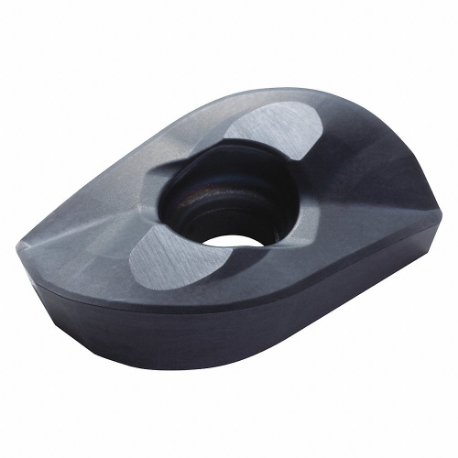

| Item | Milling Insert |
| Cast Iron (k) Compatibility | Yes |
| Chip-breaker | Yes |
| Chip-breaker Code | GM |
| Clearance Angle | 15° |
| Coating | PVD |
| Compatibility | Yes |
| Corner Radius | 10 mm |
| Countersink Hole Angle | 40° to 60° |
| Cutting Application | Finishing |
| Cutting Direction | Right Hand |
| Features | Can Accommodate A Wide Range Of Workpiece Materials |
| For Toolholder | PDR20R063M22-3, PDR20R063M22-4, PDR20R063M25.4-3, PDR20R063M25.4-4, PDR20R080M27-4, PDR20R080M27-5, PDR20R080M31.7-4, PDR20R080M31.7-5, PDR20R100M31.7-5, PDR20R100M31.7-6, PDR20R100M32-5, PDR20R100M32-6, PDR20R125M31.7-6 |
| For Use With | Indexable Ballnose End Mills |
| Hardened Compatibility | No |
| Hole Type | Countersink Hole |
| Included Angle | 85° |
| Inscribed Circle | 16 mm |
| Insert Application | Finishing |
| Insert Holding Type | Screw |
| Insert Size | 2006100 |
| Lead Angle | 15° |
| Material | Carbide |
| Mounting Style | Screw |
| No. Of Edges | 2 |
| Non Ferrous (n) Compatibility | No |
| Number Of Cutting Edges | 2 |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Shape | Parallelogram |
| Stainless Compatibility | No |
| Super Alloy Compatibility | No |
| System Of Measurement | Metric |
| Thickness | 6.35 mm |
| Width | 16 mm |
| Workpiece Compatibility | Steel |
| Ansi Code | ADMT2006100PDR-GM |
| Coating Process | PVD |
| Finish - Machining | TiAlN |
| Insert Style | ADMT |
| Iso Number | ADMT2006100PDR-GM |
| Manufacturer Grade | XP3930 |
| Material - Machining | Carbide |
| Measurement System | Metric |
| Series | 78PDR Series |
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
