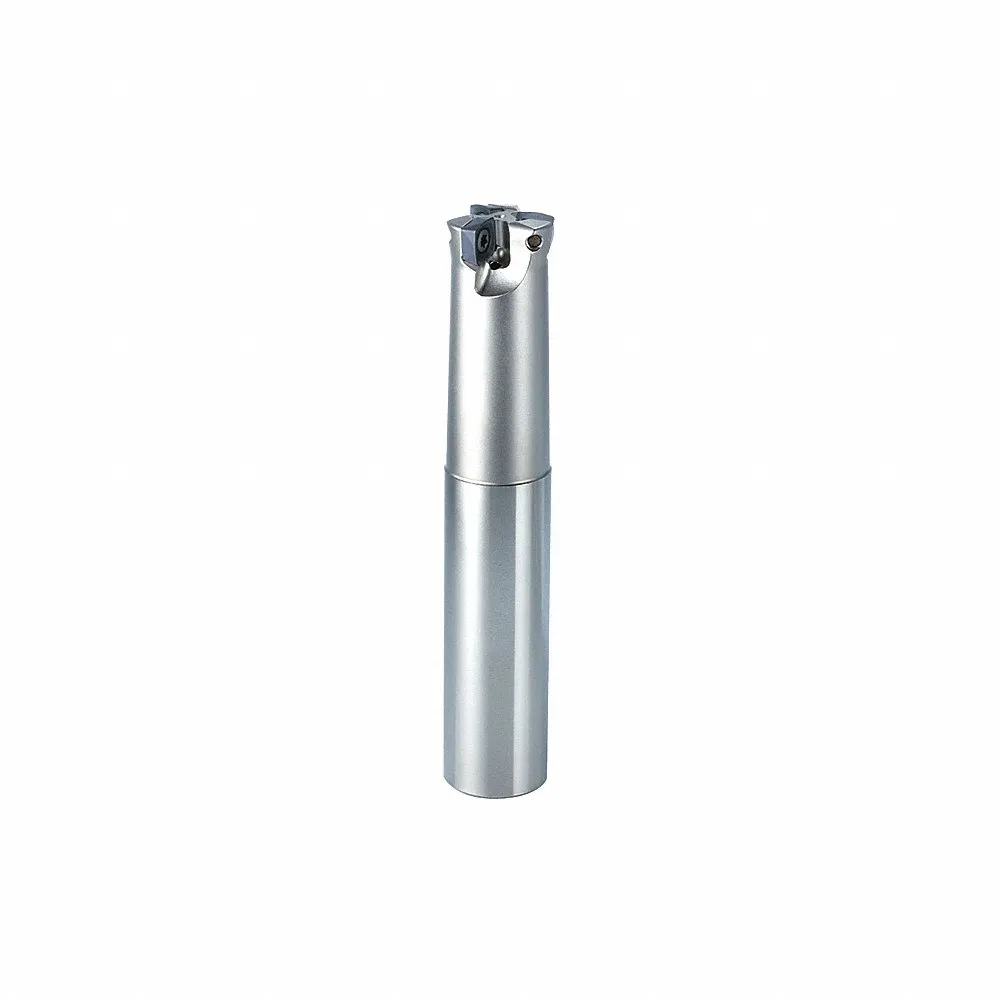

| Item | End Mill |
| Compatible Hardware | 7808113, 7808150, 7808209 |
| Coolant Fed | Coolant Through |
| Cutting Application | Rough Milling |
| Cutting Depth | 0.06" |
| Cutting Direction | Right Hand |
| Features | Economical 4 Corner Insert With A Chip Breaker That Enhances Cutting Performance While Maintaining Rigidity, End Mill And Face Mill Style, High Feed Design Reduces Radial Cutting Forces And Tool Vibration, Small Cutting Angle Reduces Actual Chip Thickness |
| Head Dia. | 1 1/4" |
| Head Projection Length | Not Applicable |
| Insert Cutting Edge Length | 12.7 mm |
| Insert Holding Type | Clamping Screw |
| Insert Shape | Square |
| Insert Size | 12 mm |
| Max. Cutting Dia. | 1 1/4" |
| Max. Speed | 590 RPM |
| Min. Cutting Dia. | 0.596" |
| Number Of Coolant Holes | 2 |
| Number Of Inserts | 2 |
| Overall Length | 9.366" |
| Shank Dia. | 1 1/4" |
| Shank Length | 2.279" |
| Shank Type | Weldon |
| Side Cutting Edge Angle | 9° |
| Toolholder Style | PHC |
| Ansi Code | PHC12R125FA125-2LL |
| Depth Of Cut | 0.0600" |
| Insert Style | SXMT12 |
| Series | HSK40 Series |
| Shank Type - Machining | Weldon |
| Ship weight (kg) | 1.32 |
