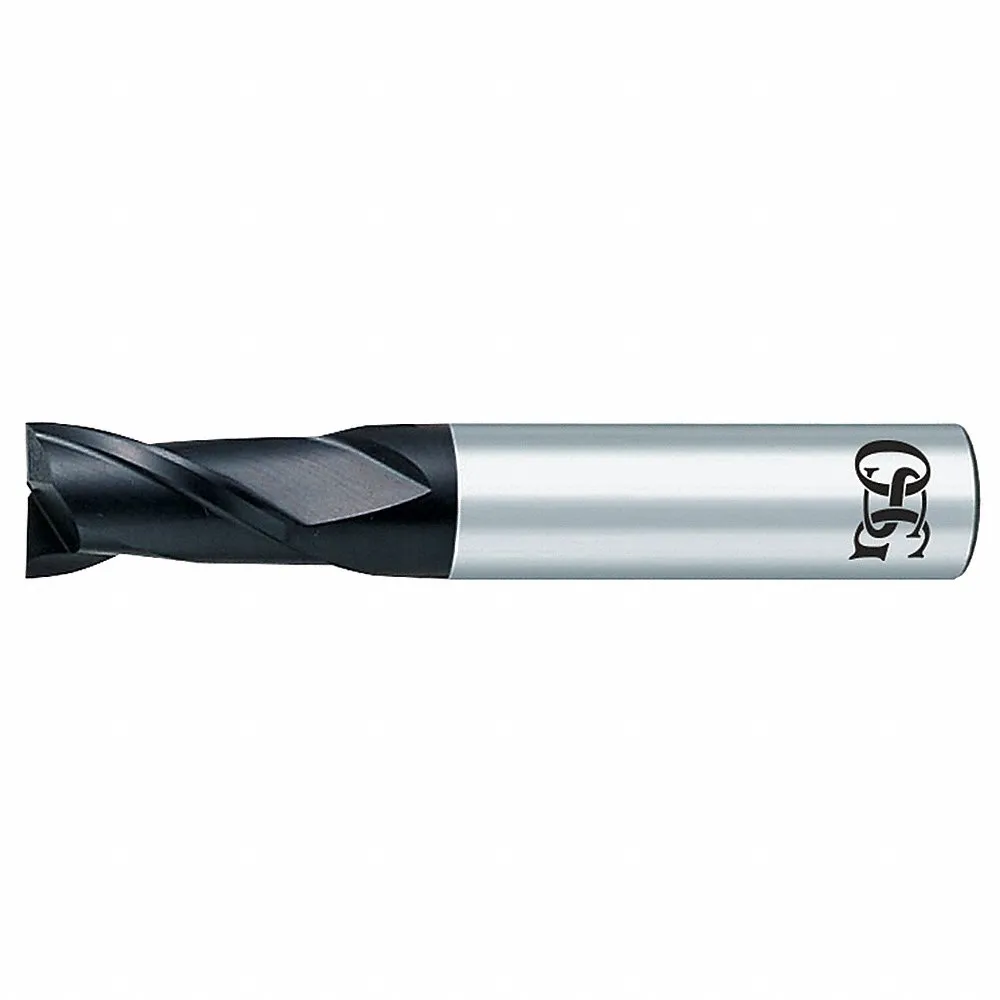

| Item | Square End Mill |
| Cast Iron (k) Compatibility | Yes |
| Cutting Direction | Right Hand |
| Cutting Direction - Machining | Right Hand |
| Cutting Length | 0.469" |
| Cutting Type | Center Cutting |
| Dimension Type | Decimal Inch |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing |
| End Mill Style | Square |
| End Type | Single End |
| Finish | WXL |
| Grade | Micro Grain Carbide |
| Hardened Compatibility | Yes |
| Helix Angle | 30° |
| List Number | 3621 |
| Material | Carbide |
| Milling Dia. | 0.156" |
| Non Ferrous (n) Compatibility | Yes |
| Number Of Flutes | 2 |
| Overall Length | 2" |
| Primary Material Application | Cast Iron, Hardened Steel, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | H, K, P |
| Secondary Material Application | Aluminum, Nickel, Titanium |
| Secondary Material Application Iso Code | M, S |
| Shank Dia. | 0.188" |
| Shank Type | Straight |
| Stainless (m) Compatibility | Yes |
| Steel (p) Compatibility | Yes |
| Super Alloy (s) Compatibility | Yes |
| System Of Measurement | Fractional Inch |
| End Mill Cutting Type | Center Cutting |
| Length Of Cut | 15/32" |
| Material Grade | C2 Micrograin |
| Measurement System | Fractional Inch |
| Milling Diameter | 5/32" |
| Shank Diameter | 3/16" |
| Single End/double End | Single End |
| Ship weight (kg) | 0.01 |
