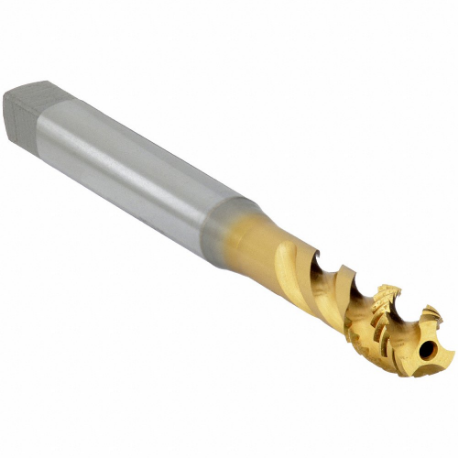

| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 7.1 mm |
| 65% Thread Drill Size | I |
| 75% Thread Drill Size | H |
| Coolant Fed | Coolant Through |
| Drill Bit Size | 6.70 mm, 6.78 mm, 6.86 mm, 6.94 mm, 7.03 mm |
| Extended Neck | Yes |
| Finish | Titanium Nitride Coated |
| Grade | Grade 239 |
| Helix Angle | 45° |
| Number Of Flutes | 3 |
| Overall Length | 90 mm |
| Primary Material Application | Steel |
| Secondary Material Application | All Materials |
| Shank Dia. | 8.07 mm |
| Shank Length | 55 mm |
| Shank Type | Straight |
| Square Size | 6.05 mm |
| System Of Measurement | Metric |
| Tap Chamfer | Modified Bottoming |
| Tap Length Standard | DIN |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 10 mm |
| Thread Pitch | 1.25 mm |
| Thread Size | M8 x 1.25 |
| Thread Standard | Metric Coarse |
| Material Grade - Machining | Grade 239 |
| Measurement System | Metric |
| Primary Material Application Iso Code | P |
| Secondary Material Application Iso Code | H, K, M, N, P1, P2 |
| Shank Type - Machining | Straight |
| Standards | ANSI, DIN |
| Tap Finish | TiN |
| Tap Style | Spiral Flute |
| Tap Thread Size | M8 x 1.25 |
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
