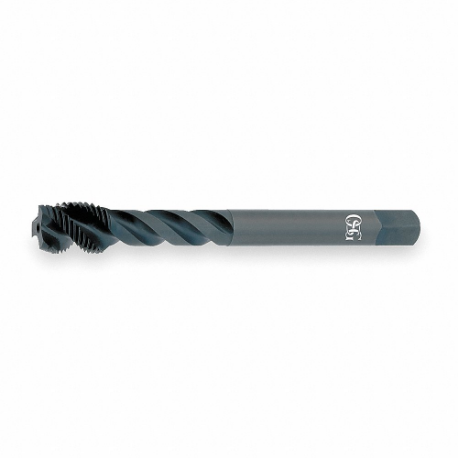

| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 0.9 mm |
| 65% Thread Drill Size | 0.812" |
| 75% Thread Drill Size | 20.4 mm |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 0.8008", 0.8054", 0.8101", 0.8147", 0.8193" |
| Extended Neck | Yes |
| Finish | Black Oxide |
| Fits Class | Class 2B |
| Helix Angle | 45° |
| Number Of Flutes | 4 |
| Overall Length | 4.906" |
| Primary Material Application | Steel |
| Secondary Material Application | Cast Iron, Hardened Steel, Stainless Steel |
| Shank Dia. | 0.688" |
| Shank Length | 2 1/4" |
| Shank Type | Straight |
| Square Size | 0.522" |
| System Of Measurement | Imperial |
| Tap Chamfer | Modified Bottoming |
| Tap Length Standard | DIN |
| Tap Material | High Speed Steel |
| Tap Shank Standard | DIN |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 7/8" |
| Thread Limit | 2B |
| Thread Size | 7/8"-14 |
| Thread Standard | Fine |
| Threads Per Inch | 14 |
| Class Of Fit | Class 2B |
| Material Grade - Machining | Vanadium High Speed Steel |
| Measurement System | Fractional Inch |
| Primary Material Application Iso Code | P |
| Secondary Material Application Iso Code | H, K, M, P |
| Shank Type - Machining | Straight |
| Standards | DIN |
| Tap Finish | Black Oxide |
| Tap Style | Spiral Flute |
| Tap Thread Size | 7/8"-14 |
| Thread Limit / Class Of Fit | 2B |
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
