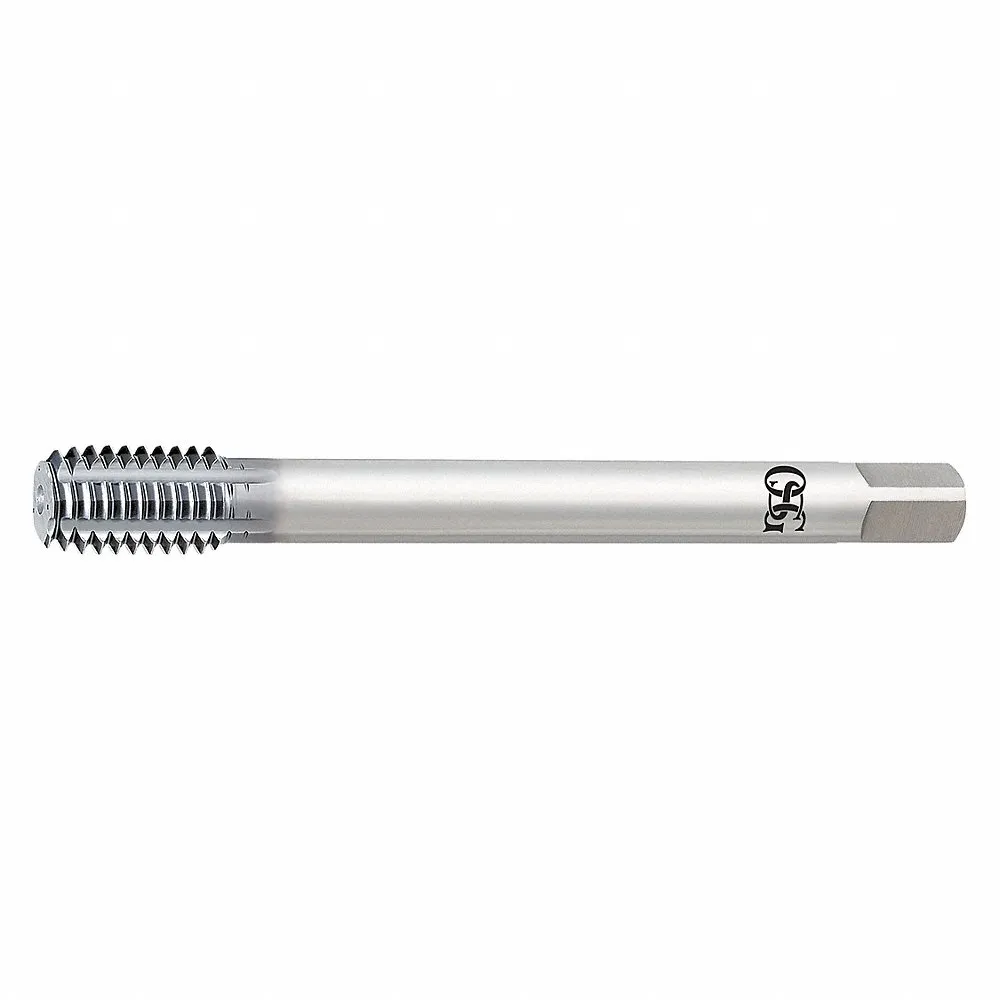

| Item | Thread Forming Tap |
| 55% Thread Drill Size | 21.1 mm |
| 65% Thread Drill Size | 21 mm |
| 75% Thread Drill Size | 20.75 mm |
| Coolant Fed | Non Coolant Through |
| Cutting Direction - Machining | Right Hand |
| Extended Neck | Yes |
| Features | Produces No Chips |
| Finish | Titanium Carbonitride Coated |
| Fits Class | Class 2B |
| List Number | 16250 |
| No. Of Pieces | 1 |
| Number Of Flutes | 0 |
| Overall Length | 5 1/2" |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Hardened Steel, Stainless Steel, Steel |
| Primary Material Application Iso Code | H, M, N, P |
| Secondary Material Application | Hardened Steel, Nickel, Titanium |
| Secondary Material Application Iso Code | H, S |
| Shank Dia. | 0.688" |
| Shank Length | 2 27/32" |
| Spiral Direction | Neutral |
| Square Size | 0.522" |
| Tap Chamfer | Bottoming |
| Tap Length Standard | DIN |
| Tap Material | Cobalt |
| Tap Shank Standard | ANSI |
| Tap Type | Thread Forming |
| Thread Direction | Right Hand |
| Thread Length | 1 1/16" |
| Thread Limit | H11 |
| Thread Size | 7/8"-9 |
| Threads Per Inch | 9 |
| Class Of Fit | Class 2B |
| Material Grade - Machining | Grade 16250 |
| Standards | DIN |
| Tap Finish | TiCN |
| Tap Style | Thread Forming |
| Thread Limit / Class Of Fit | H11, 2B |
| Thread Standard | UNC |
| Ship weight (kg) | 0.28 |
| Product | Model | Price | |
|---|---|---|---|
 |
1400100006 | €27.51 | |
 |
1400100000 | €26.74 | |
|
1400100100 | €28.40 | |
 |
1400100101 | €26.03 | |
 |
1405000308 | €66.85 | |
 |
1405000208 | €66.56 | |
 |
1400100201 | €26.74 |
