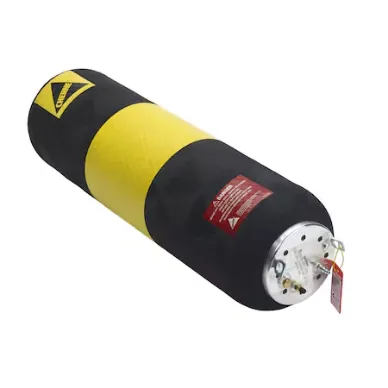

Item | Test Ball Plug |
Air Connection Gender | Male |
Air Connection Size | 1/8" |
Application | For General Plumbing (6 In Dia. Or Less), For Underground Waterworks (Above 6 In Dia.) |
Body Surface Style | Smooth |
Body Type | Smooth Body |
Contains Pressure Valve | No |
Deflated Dia. | 3.41" |
Deflated Length | 23" |
Features | Flexible, Safety Through Design |
For Inside Dia. | 3.95" to 8.25" |
For Maximum Pipe Inside Diameter | 8 1/4" |
For Maximum Pipe Size | 8" |
For Minimum Pipe Inside Diameter | 3.95" |
For Minimum Pipe Size | 4" |
For Pipe Size | 4" to 8" , 4", 5", 6", 7", 8" |
Includes Protective Sleeve | No |
Max. Back Pressure | 15 psi |
Maximum Back Pressure (air) | 15 psi |
Mfr. Series | I-Series |
Number Of Inflation Chamber | 1 |
Seal Material | Natural Rubber |
Tether Connection | Bracket Tag |
Weight | 3.8 lbs. |
Tether Connection | Bracket Tag |
Air Connection | 1/8" Male Tire Valve |
Air Connection Type | Tire Valve |
Deflated Diameter | 3.41" |
For Inside Diameter | 3.95" to 8.25" |
Maximum Back Pressure | 15 psi |
Number Of Inflation Chambers | 1 |
Pipe Size | 4", 5", 6", 7", 8" |
Plug Application | For General Plumbing (6" dIa or less), For Underground Waterworks (Above 6" dia) |
Plug Seal Material | Natural Rubber |
Required Inflation Pressure | 45 psi |
Series | I Series |
Test Plug Weight | 3.8 lbs. |
