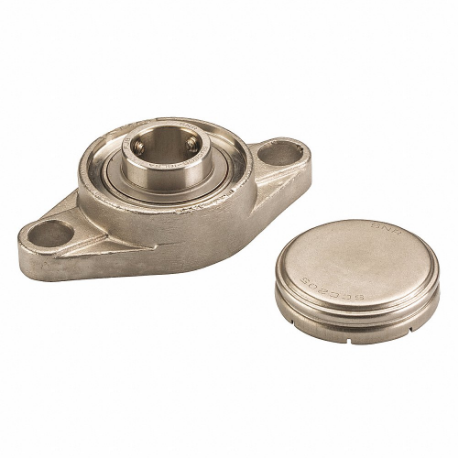

| Item | Bearing |
| Application | Food And Beverage |
| Bore Dia. | 1 5/8" |
| Bore Type | Cylindrical |
| Closure Type | Double Sealed |
| Dynamic Load Capacity | 5780 lbf. |
| Flange Thickness | 0.594" |
| Grade | Grade 440C |
| Housing Material | Stainless Steel |
| Housing Material Finish | Unfinished |
| Housing Material Grade | Grade 440C |
| Housing Type | Rhombus |
| Included Bearing | SUCFL209-26CCFG1 |
| Included Bearing Cap | Closed Cap |
| Includes | (2) Set Screw |
| Insert Material | Stainless Steel |
| Insert Type | Radial Ball |
| Lubricant Material Grade | FDA/USDA-H1 Solid Grease |
| Lubrication Openings | One Zirc Fitting |
| Max. Speed | 3100 RPM |
| Max. Temp. | 212°F |
| Min. Temp. | 14°F |
| Mount Hole Center-to-center Height | 5.828" |
| Mount Hole Center-to-center Length | 5.828" |
| Mounting Bolt Size | 5/8" |
| Number Of Mounting Holes | 2 |
| Overall Height | 4 1/4" |
| Overall Length | 7.078" |
| Overall Width | 2.203" |
| Resistance Properties | Corrosion Resistant |
| Rolling Element Rows | 1 |
| Seal Material | Silicone |
| Seal Type | Contact |
| Shaft Locking Type | Set Screws |
| Static Radial Load Capacity | 4680 lbf. |
| Sub-brand | Sentinel |
| Bearing Insert Material | Stainless Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | 440C |
| Bore Diameter | 1 5/8" |
| Closure | Double Sealed |
| Expansion Type | Fixed |
| Lubricant Material | FDA, USDA-H1 Solid Grease |
| Maximum Speed | 3100 RPM |
| Maximum Temperature | 212°F |
| Minimum Temperature | 14°F |
| Number Of Mount Holes | 2 |
| Standards | NSF H1 REGISTERED |
| Ship weight (kg) | 1.8 |
| Ship height (cm) | 10.8 |
| Ship length (cm) | 17.98 |
| Ship width (cm) | 5.6 |
| Product | Model | Price | |
|---|---|---|---|
 |
SUCNFL208-24C0FG1 | €722.05 | |
 |
SUCFL208-24C0FG1 | €955.47 | |
|
SUCNFL206-20C0FG1 | €479.73 | |
 |
SUCNFL206-20CCFG1 | €538.63 | |
|
SUCNFL207-20C0FG1 | €626.31 | |
|
SUCFL207-20CCFG1 | €916.34 | |
|
SUCFL207-20C0FG1 | €862.92 |
