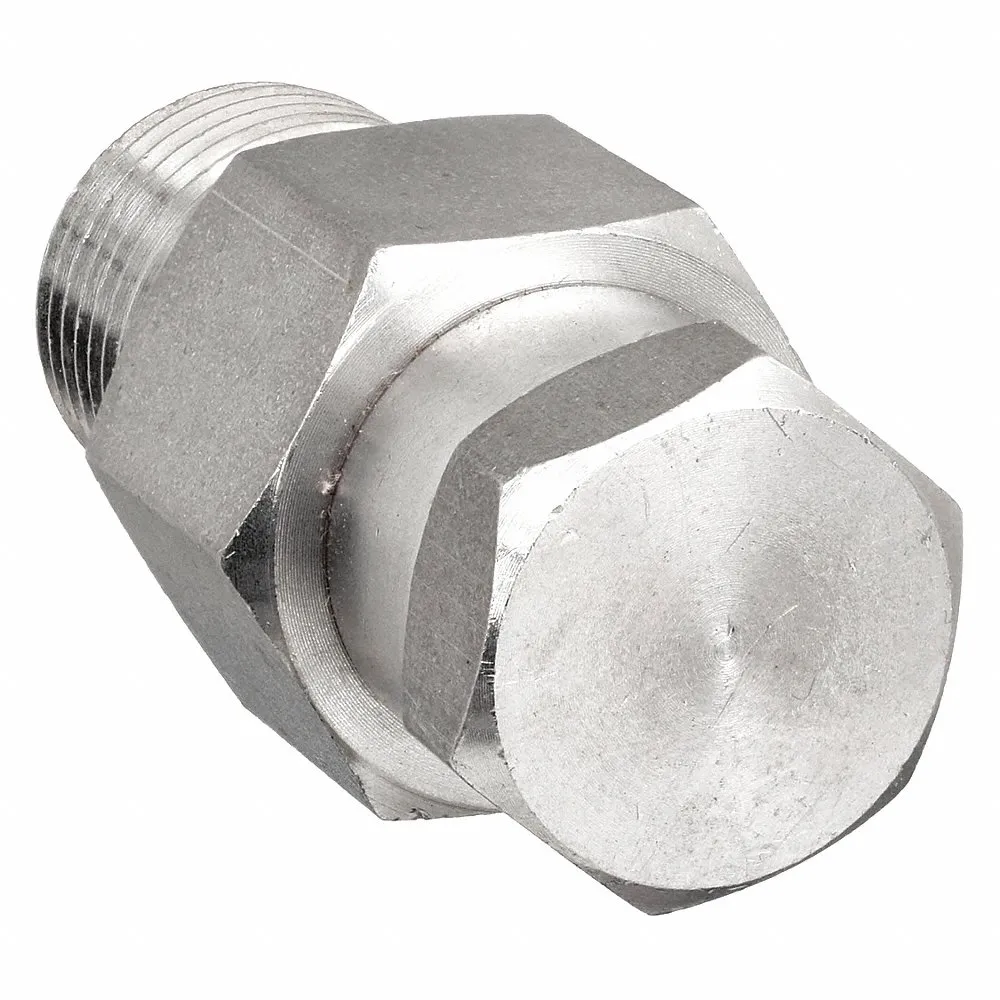

| Item | Atmospheric Vacuum Breaker |
| Body | Unfinished Finished Stainless Steel |
| Body Material | Stainless Steel |
| Check Mechanism Material | EPDM |
| Connection Gender - Side 1 | Male |
| Connection Size - Side 1 | 1/2" |
| Connection Type | MNPT |
| Connection Type - Side 1 | NPT |
| Cracking Pressure | 0.36 psi |
| Finished | Unfinished |
| For Media | Steam |
| Freeze Protection | No |
| Includes Atmospheric Vent | Atmospheric Vent Included |
| Includes Freeze Protection | No Freeze Protection |
| Max. Media Temperature | 350°F |
| Max. Pressure (cwp) | 125 psig |
| Max. Pressure (steam) | 125 psi |
| Media Temp. Range | 350°F |
| Mounting Orientation | Vertical |
| Overall Length | 2.06" |
| Pipe Size | 1/2" |
| Protection Type | Back Siphonage |
| Seat Material | EPDM |
| Spring Material | 304 Stainless Steel |
| Vacuum Breaker Style | Atmospheric Vacuum Breaker |
| Valve Series | VB |
| Ship weight (kg) | 0.12 |
