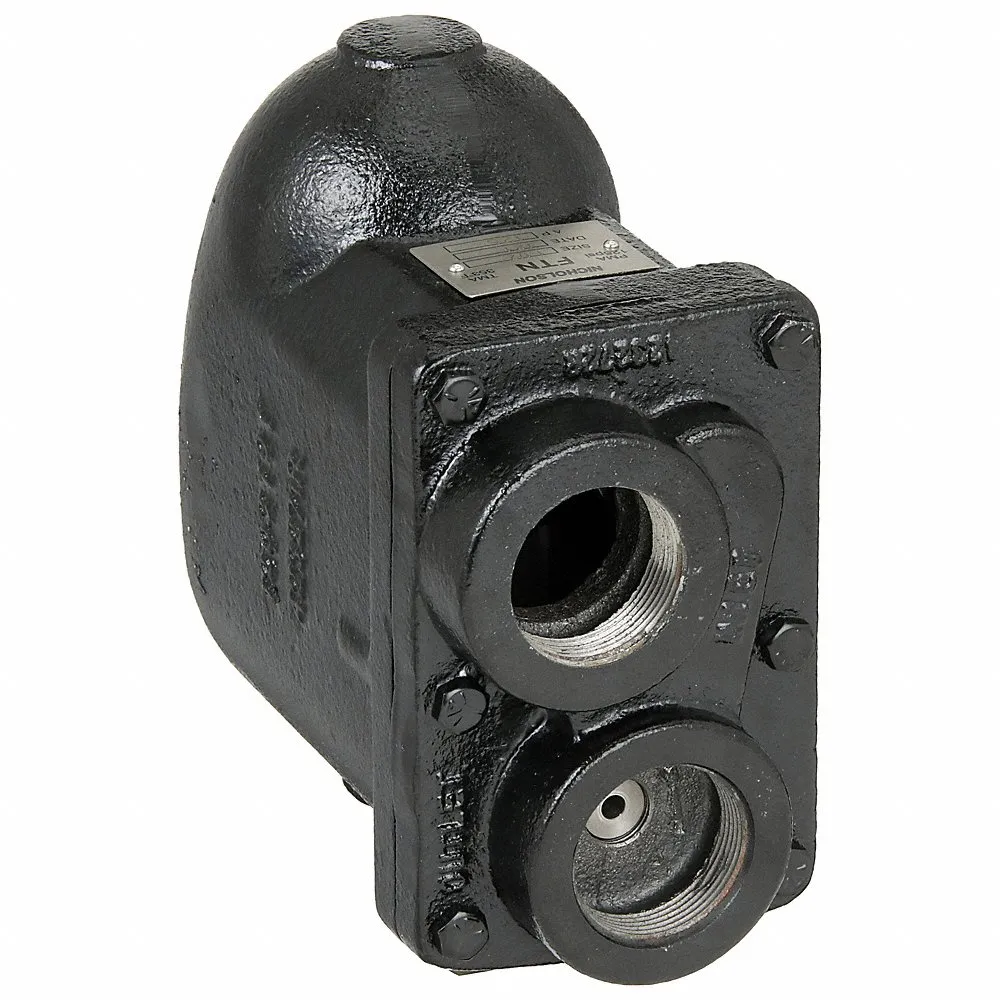

| Item | Steam Trap |
| Air Vent Material | Stainless Steel |
| Allowable Pressure - Maximum | 250 psi |
| Allowable Temperature - Maximum | 450°F |
| Application | Blast Coils, Heat Exchangers, Process Equipment, Steam Mains, Unit Heaters |
| Body Material | Cast Iron |
| Condensate Capacity | 4500 lbs./hr. |
| Configuration | C Pattern |
| Distance Between Inlet And Outlet Port | 8 1/2" |
| Float Material | Cast Iron |
| Includes Air Vent | Air Vent Included |
| Includes Strainer | Strainer Not Included |
| Installation Orientation | Horizontal |
| Manufacturer Series | FTN |
| Maximum Capacity At Maximum Pressure Load | 4500 lbs./hr. @ 125 psi |
| Operating Pressure - Maximum | 125 psi |
| Port Connection Gender | Female |
| Port Connection Size | 1 1/2" |
| Port Connection Type | NPT |
| Resistance Properties | Water Hammer Resistant |
| Steam Trap Type | Float & Thermostatic |
| Ship weight (kg) | 9.02 |
| Product | Model | (f)npt Connections (in.) | Npt Inlet | Npt Outlet | Price | |
|---|---|---|---|---|---|---|
 |
NTD600-N1C9A | 1/2 | 1/2" | 1/2 | €417.34 | |
|
NTD600-N1D9A | 3/4 | 3/4" | 3/4 | €504.54 | |
|
NTD600-N1E9A | 1 | 1" | 1 | €611.08 | |
 |
1 FTE-145 | - | - | - | €737.91 | |
|
1 FTE-200 | - | - | - | €830.38 | |
|
1 FTE-65 | - | - | - | €691.82 | |
 |
1 NFT250-100 | - | - | - | €1,301.68 |
