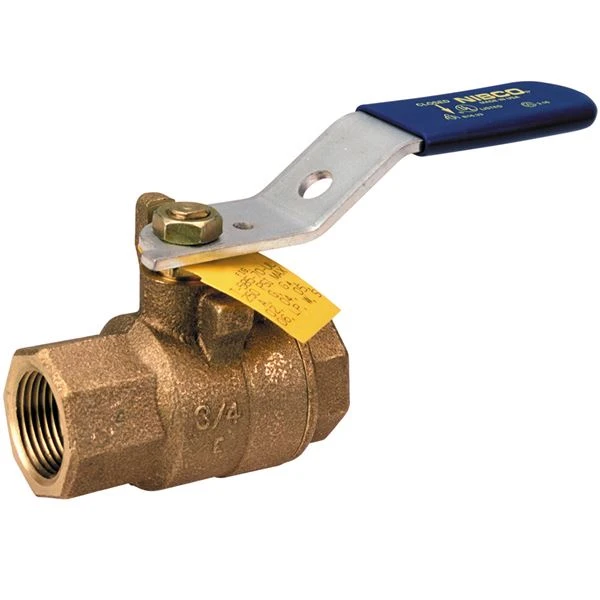

| Item | Ball Valve |
| Agency Compliance | Not Rated |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Ball Finish | Chrome Plated |
| Ball Material | Brass |
| Ball Port Style | Full Port |
| Ball Valve Basic Body Material | Bronze |
| Ball Valve Product Group | Manual |
| Body Material | Bronze |
| Body Style | Inline |
| Connection Gender - Side 1 | Female |
| Connection Gender Side 2 | Female |
| Connection Size - Side 1 | 1/2" |
| Connection Size - Side 2 | 1/2" |
| Connection Type | FNPT x FNPT |
| For Media | Flammable Fluids, Gas |
| Handle Color | Blue |
| Handle Finish | Clear Chromate Plastisol Coated, Zinc Plated |
| Handle Height | 1 22/25" |
| Handle Material | Steel |
| Handle Type | Lever |
| Included Mounting | Not Applicable |
| Max. Pressure | 250 psi WOG |
| Max. Pressure For Combustible Gas | Not Rated |
| Nominal Valve Size | 1/2" |
| Number Of Pieces | 2 |
| Pipe Schedule Compatibility | Not Applicable |
| Pipe Size | 1/2" |
| Port | Full |
| Pressure For Water | 250 psi WOG |
| Seal Material | PTFE |
| Seat Material | RPTFE |
| Stem Material | Silicon Bronze |
| Stem Type | Blowout Proof |
| Temp. Range | -20°F to +400°F |
| Vacuum Service Rating | Not Applicable |
| Valve Body Style | Straight |
| Vented Ball Valve | Not Applicable |
| 3-a Compliance | Not Rated |
| Connection Gender - Side 2 | Female |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Handle | Lever |
| Manufacturer Warranty | 5 yrs. |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 250 psi |
| Max. Pressure (steam) | 250 psi |
| Media Temp. Range | -20°F to 400°F |
| Overall Length | 2.44" |
| Standards | ANSI/ASME B16.33, CGA 3.16, UL842 CUL YSDT7 CSA |
| Valve Construction | Two-Piece |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 13.46 |
| Ship width (cm) | 6.86 |
| HS code | 8481801085 |
| Country of Origin | US |
| Model | Ball Material | Compliance | Handle Type | Max. Pressure | Pipe Size | Stem Material | Price | |
|---|---|---|---|---|---|---|---|---|
| T58570 1/4 | Chrome-Plated Brass | Conforms To MSS SP-110 | Lever | 600 psi WOG | 1/4" | Silicon Bronze | €39.06 | |
| T58570 3/8 | Chrome-Plated Brass | Conforms To MSS SP-110 | Lever | 600 psi WOG | 3/8" | Silicon Bronze | €38.73 | |
| T58570 3/4 | Chrome-Plated Brass | Conforms To MSS SP-110 | Lever | 600 psi WOG | 3/4" | Silicon Bronze | €61.46 | |
| T58570 1 | Chrome-Plated Brass | Conforms To MSS SP-110 | Lever | 600 psi WOG | 1" | Silicon Bronze | €110.29 | |
| T58570 1-1/4 | Chrome-Plated Brass | Conforms To MSS SP-110 | Lever | 600 psi WOG | 1.25" | Silicon Bronze | €157.98 | |
| T58570 1-1/2 | Chrome-Plated Brass | Conforms To MSS SP-110 | Lever | 600 psi WOG | 1.5" | Silicon Bronze | €235.34 | |
| T58570 2 | Chrome-Plated Brass | Conforms To MSS SP-110 | Lever | 600 psi WOG | 2" | Silicon Bronze | €326.26 |
