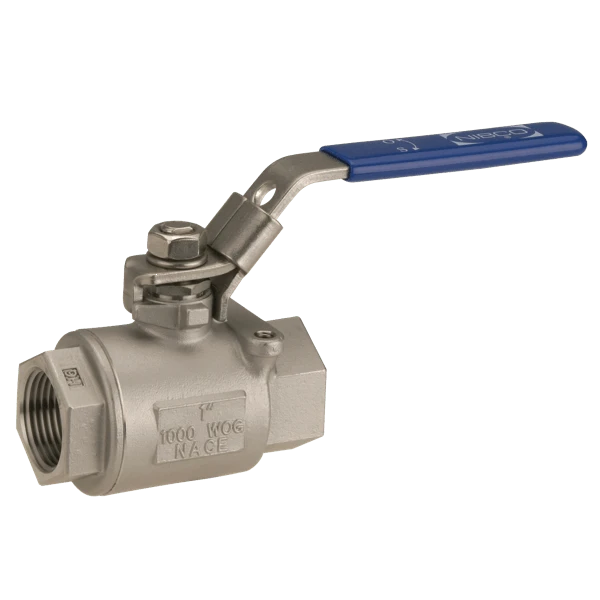

| Item | Ball Valve |
| Agency Compliance | Not Rated |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Ball Material | Stainless Steel |
| Ball Port Style | Full Port |
| Ball Valve Basic Body Material | Stainless Steel |
| Ball Valve Product Group | Manual |
| Connection Gender - Side 1 | Female |
| Connection Gender Side 2 | Female |
| Connection Size - Side 1 | 1" |
| Connection Size - Side 2 | 1" |
| Connection Type | FNPT |
| Features | Non-Shock Cold Working Pressure, 69 Bar, Full Port, Cast Is O-Mounting Pad |
| For Media | Corrosive Chemicals, Water |
| Grade | Grade 351 |
| Handle - Locking | Locking |
| Handle Color | Blue |
| Handle Length | 5.73" |
| Handle Type | Lever Locking |
| Hose I.d. | 1" |
| Included Mounting | Actuator Mounting Pad |
| Max. Pressure | 1000 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Nominal Valve Size | 1" |
| Number Of Pieces | 2 |
| Number Of Ways | 2 |
| Pipe Schedule Compatibility | Not Applicable |
| Pipe Size | 1" |
| Port | Full |
| Seal Material | PTFE |
| Seat Material | RPTFE |
| Stem Grade | Grade 316 |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Proof |
| Temp. Range | -20°F to +420°F |
| Vacuum Service Rating | Not Applicable |
| Valve Body Style | Straight |
| Vented Ball Valve | Vented |
| 3-a Compliance | Not Rated |
| Body Material | Stainless Steel |
| Connection Gender - Side 2 | Female |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Handle | Locking Lever |
| Handle Material | Grade 304 Stainless Steel |
| Manufacturer Warranty | 5 yrs. |
| Max. Media Temperature | 400°F |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 1000 psi |
| Max. Pressure (steam) | 1000 psi |
| Media Temp. Range | -20°F to 400°F |
| Min. Media Temperature | -20°F |
| Overall Length | 3.54" |
| Standards | MSS SP-110 |
| Valve Construction | Two-Piece |
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 19.3 |
| Ship width (cm) | 10.16 |
| Country of Origin | TW |
