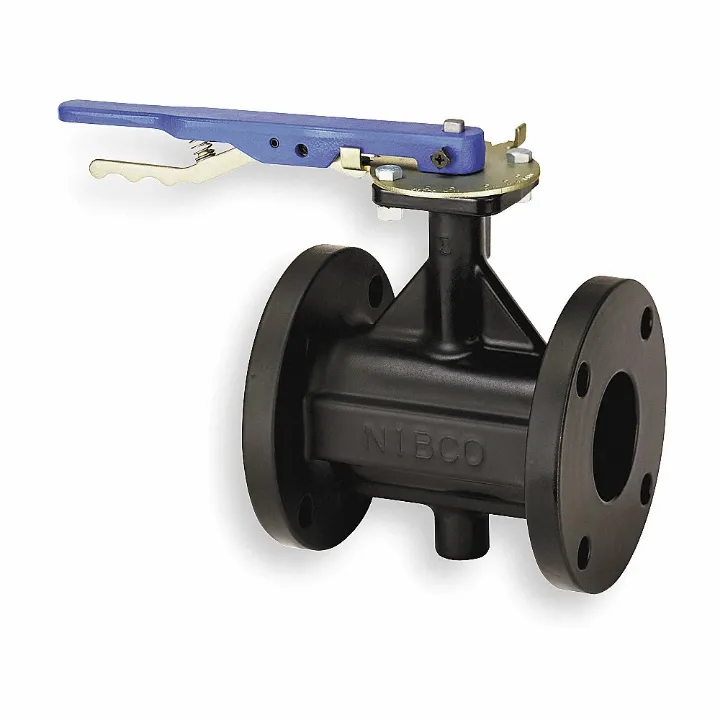

NIBCO FC27653 21/2 Butterfly Valve Lever 2 1/2 Inch Cast Iron
Get it by Tuesday, Jun 17
€554.24 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Butterfly Valve |
| Body Material | Cast Iron |
| Handle Type | Lever |
| Liner Material | EPDM |
| Max. Water Pressure | 200 psi |
| Pipe Size | 2 1/2" |
| Style | Flanged |
| Temp. Range | -20°F to +200°F |
| 3-a Compliance | Not Rated |
| Ansi Flange Class | Class 125 |
| Bolt Holes | 4 |
| Connection Type | Lug |
| Disc Alignment | Concentric |
| Disc Material | Ductile Iron |
| For Media | Water |
| Handle - Locking | Locking |
| Includes Disc Position Indicator | Disc Position Indicator Included |
| Manufacturer Warranty | 5 yrs. |
| Max. Pressure (cwp) | 200 psi |
| Media Temp. Range | -20°F to 200°F |
| O-ring Material | EPDM |
| Standards | MSS SP-25, MSS SP-67, NSF/ANSI/CAN 372-2020 |
| Stem Material | Stainless Steel |
| Stop Positions | 10 |
| Vacuum Service Rating | Not Rated |
| Valve Series | FC2765 |
| Ship weight (kg) | 10.47 |
| Ship height (cm) | 29.97 |
| Ship length (cm) | 21.34 |
| Ship width (cm) | 22.86 |
| HS code | 8481803030 |
| Country of Origin | US |
| Model | Bolt Circle Dia. | Handle Type | Pipe Size | Temp. Range | Price | |
|---|---|---|---|---|---|---|
| FC27653 2 | - | Lever | 2" | -20 to 200 Degrees F | €588.03 | |
| FC27653 3 | - | Lever | 3" | -20 to 200 Degrees F | €657.87 | |
| FC27653 4 | - | Lever | 4" | -20 to 200 Degrees F | €974.10 | |
| FC27653 5 | - | Lever | 5" | -20 to 200 Degrees F | €1,581.27 | |
| FC27653 6 | - | Lever | 6" | -20 to 200 Degrees F | €1,617.87 | |
| FC27655 6 | 9.5" | Gear | 6" | -20 to 225 Degrees F | €1,753.21 | |
| FC27655 8 | 11.75" | Gear | 8" | -20 to 225 Degrees F | €2,663.37 |
