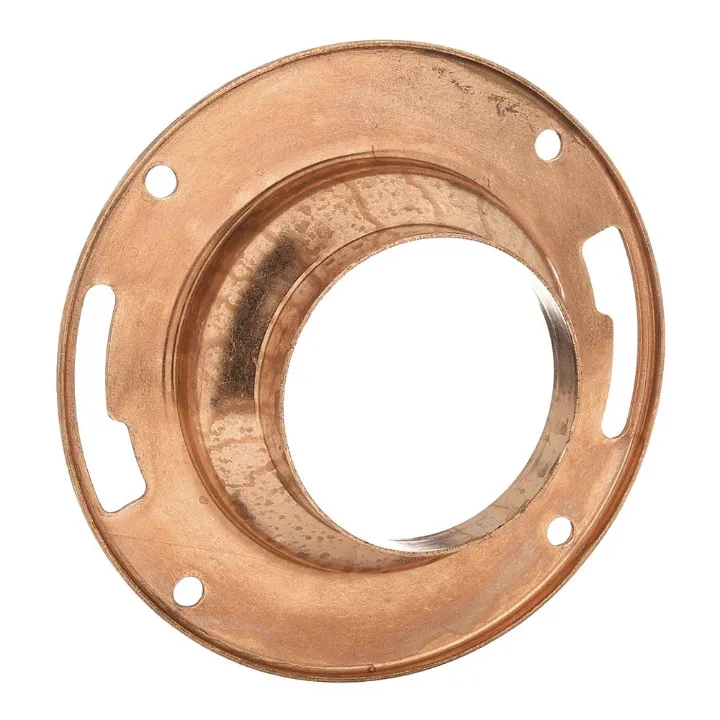

| Item | DWV Closet Flange |
| Application | Air, Non-Potable Water |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Flange |
| Body Material | Wrought Copper |
| Bolt Hole Diameter | 1/4" |
| Connection Type | C |
| Fitting Material | Wrot Copper |
| Fitting Side A Connection Type | Cup |
| Fitting Side A Copper Tube Size | 4" |
| Fitting Side B Connection Type | Flange |
| Fitting Side B Copper Tube Size | 3" |
| Flange Thickness | 1/2" |
| Flannge Outside Dia. | 6 3/4" |
| Max. Pressure | 5 psi |
| No. Of Bolt Holes | 4 |
| Outside Dia. | 4 1/8" x 3 1/8" |
| Specific Pipe Fitting Shape | Flange |
| Temp. Range | -20°F to +400°F |
| Fitting Side A Tube Outer Diameter | 4 1/8" |
| Fitting Side B Tube Outer Diameter | 3 1/8" |
| Flange Outside Diameter | 6 3/4" |
| Material Grade | C12200 |
| Maximum Operating Pressure | 5 psi |
| Maximum Operating Temperature | 400°F |
| Minimum Operating Temperature | 20°F |
| Number Of Bolt Holes | 4 |
| Resistance Properties | Dezincification Resistant |
| Specific Fitting Shape | Closet Flange |
| Standards | ASME B16.29, ASTM B75 ALLOY C12200, ISO 9001 |
| Ship weight (kg) | 0.39 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 17.78 |
| HS code | 7412100000 |
| Country of Origin | US |
