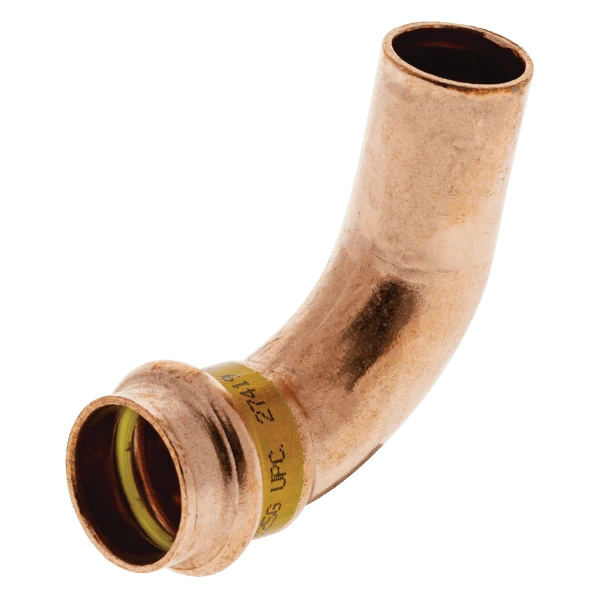

| Item | Elbow |
| Application | Natural Gas, Non-Potable Water, Propane |
| Compatible Tube Material | Copper |
| Fitting Side A Connection Type | FTG |
| Fitting Side A Copper Tube Size | 1 1/4" |
| Fitting Side A Tube Outer Diameter | 1 1/4" |
| Fitting Side B Connection Type | Press Fit |
| Fitting Side B Copper Tube Size | 1 1/4" |
| Fitting Side B Tube Outer Diameter | 1 1/4" |
| Material | Copper |
| Max. Operating Pressure | 200 psi |
| O-ring Material | HNBR |
| Overall Length | 3 5/8" |
| Specific Fitting Shape | 90° Elbow Adapter |
| Compatible Copper Tube Type | Type G, Type K, Type L |
| Fitting Material | Copper |
| Includes Center Stop | No Center Stop |
| Maximum Operating Pressure | 200 psi |
| Maximum Operating Temperature | 180°F |
| Minimum Operating Temperature | -40°F |
| Standards | ANSI LC4/CSA 6.32, IAPMO/UPC LC-4, ICC-ES PMG 1502, IFGC INTERNATIONAL FUEL GAS CODE, NFPA 30 FLAMMABLE AND COMBUSTIBLE LIQUIDS CODE, NFPA 30A CODE FOR MOTOR FUEL DISPENSING FACILITIES AND REPAIR GARAGES, NFPA 31 STANDARD FOR THE INSTALLATION OF OIL BURNING EQUIPMENT (SUPPLY LINE ONLY), NFPA 54/Z223.1 NATIONAL FUEL GAS CODE, NFPA 58, UPC CHAPTER 12 FUEL PIPING |
| Ship weight (kg) | 0.22 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 9.21 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
| Model | Price | |
|---|---|---|
| 9059305HPC | €74.49 | |
| 9046500HPC | €34.82 | |
| 9059200HPC | €21.83 | |
| 9046400HPC | €25.57 | |
| 9046200HPC | €5.20 | |
| 9059110HPC | €5.61 | |
| 9046705HPC | €80.98 |
