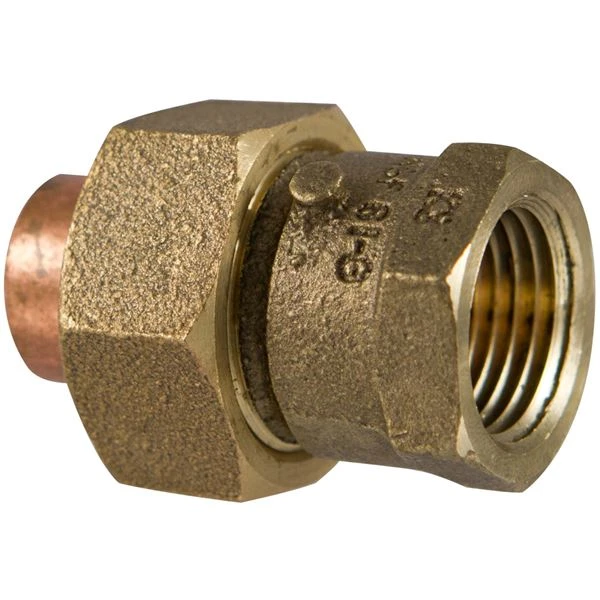

| Item | Fitting Union |
| Application | Potable Water |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Union |
| Body Material | Low Lead Cast Bronze |
| Connection Type | C x FNPT |
| Fitting Material | Bronze |
| Fitting Side A Connection Type | Cup |
| Fitting Side A Copper Tube Size | 1/4" |
| Fitting Side A Tube Outer Dia. | 3/8" |
| Fitting Side B Pipe Size | 1/4" |
| Max. Pressure | 623 psi |
| Size | 1/4" |
| Specific Pipe Fitting Shape | Union |
| Temp. Range | -20°F to +200°F |
| Fitting Side A Tube Outer Diameter | 3/8" |
| Fitting Side B Connection Type | FNPT |
| Maximum Operating Pressure | 729 psi |
| Maximum Operating Temperature | 200°F |
| Minimum Operating Temperature | 20°F |
| Resistance Properties | Dezincification Resistant |
| Specific Fitting Shape | Straight Union |
| Standards | ASME B16.18, ISO 9001, NSF/ANSI 372, NSF/ANSI 61 |
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 3.05 |
| Ship length (cm) | 4.57 |
| Ship width (cm) | 3.05 |
| HS code | 7412200000 |
| Country of Origin | MX |
