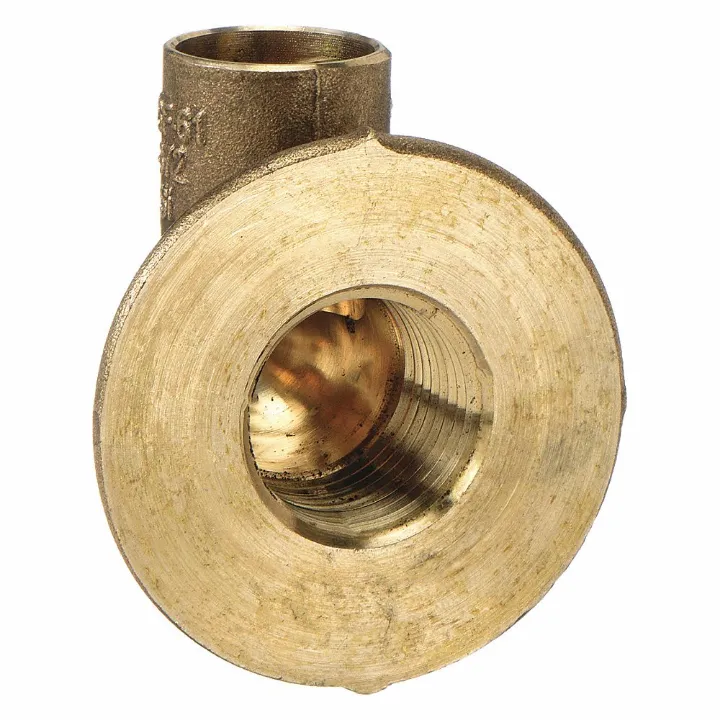

| Item | Elbow, 90 Degrees , Sink Flanged |
| Application | Potable Water |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Connection Type | C x FNPT |
| Fitting Material | Bronze |
| Fitting Side A Connection Type | Cup |
| Fitting Side A Copper Tube Size | 1/2" |
| Fitting Side A Tube Outer Dia. | 5/8" |
| Fitting Side B Pipe Size | 1/2" |
| Flannge Outside Dia. | 1 3/4" |
| Material | Low Lead Cast Bronze |
| Max. Pressure | 577 psi |
| Outside Dia. | 5/8" x 1/2" |
| Size | 1/2" |
| Temp. Range | -20°F to +200°F |
| Fitting Side A Tube Outer Diameter | 5/8" |
| Fitting Side B Connection Type | FNPT |
| Flange Outside Diameter | 1 3/4" |
| Maximum Operating Pressure | 577 psi |
| Maximum Operating Temperature | 200°F |
| Minimum Operating Temperature | 20°F |
| Resistance Properties | Dezincification Resistant |
| Specific Fitting Shape | 90° Sink Flange Elbow |
| Standards | ASME B16.18, ISO 9001, NSF/ANSI 372, NSF/ANSI 61 |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 4.57 |
| Country of Origin | MX |
