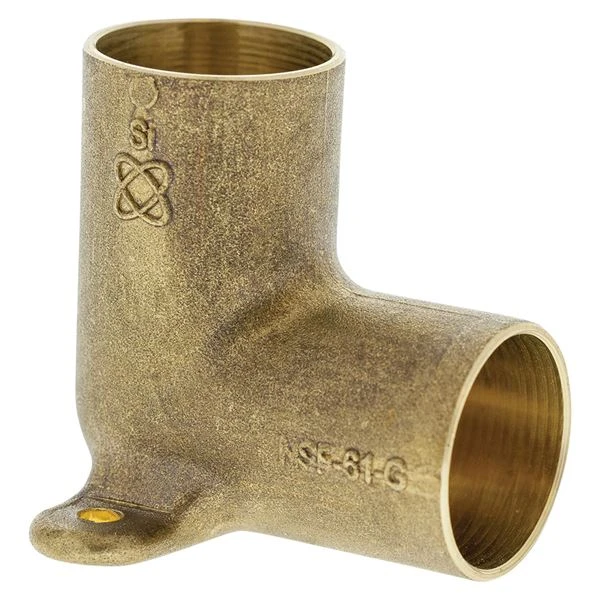

| Item | Elbow, 90 Degrees |
| Application | Potable Water |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Fitting Material | Bronze |
| Fitting Side A Connection Type | Cup |
| Fitting Side A Copper Tube Size | 3/4" |
| Fitting Side A Tube Outer Dia. | 7/8" |
| Fitting Side B Connection Type | Cup |
| Fitting Side B Copper Tube Size | 3/4" |
| Fitting Side B Tube Outer Dia. | 7/8" |
| Material | Lead Free Cast Dzr Brass |
| Max. Pressure | 466 psi |
| Outside Dia. | 7/8" |
| Size | 3/4" |
| Temp. Range | -20°F to +400°F |
| Fitting Side A Tube Outer Diameter | 7/8" |
| Fitting Side B Tube Outer Diameter | 7/8" |
| Maximum Operating Pressure | 466 psi |
| Maximum Operating Temperature | 400°F |
| Minimum Operating Temperature | 20°F |
| Resistance Properties | Dezincification Resistant |
| Specific Fitting Shape | 90° Elbow |
| Standards | ASME B16.18, ISO 9001, NSF/ANSI 372, NSF/ANSI 61 |
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 4.83 |
| Ship length (cm) | 4.32 |
| Ship width (cm) | 3.3 |
| Country of Origin | MX |
