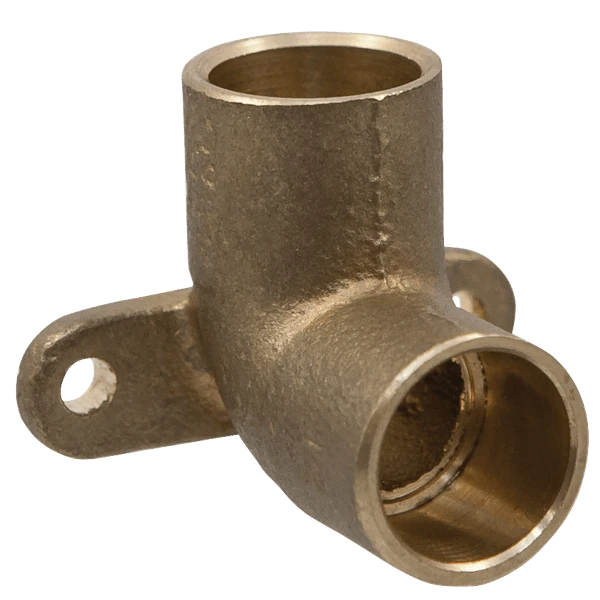

| Item | Elbow, 90 Degrees |
| Material | Lead Free Cast Dzr Brass |
| Max. Pressure | 577 psi |
| Outside Dia. | 5/8" |
| Size | 1/2" |
| Temp. Range | -20°F to +400°F |
| Application | Potable Water |
| Fitting Material | Bronze |
| Fitting Side A Connection Type | Cup |
| Fitting Side A Copper Tube Size | 1/2" |
| Fitting Side A Tube Outer Diameter | 5/8" |
| Fitting Side B Connection Type | Cup |
| Fitting Side B Copper Tube Size | 1/2" |
| Fitting Side B Tube Outer Diameter | 5/8" |
| Maximum Operating Pressure | 577 psi |
| Maximum Operating Temperature | 400°F |
| Minimum Operating Temperature | 20°F |
| Resistance Properties | Dezincification Resistant |
| Specific Fitting Shape | 90° Elbow |
| Standards | ASME B16.18, ISO 9001, NSF/ANSI 372, NSF/ANSI 61 |
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 3.05 |
| Ship length (cm) | 3.56 |
| Ship width (cm) | 3.56 |
| Country of Origin | MX |
