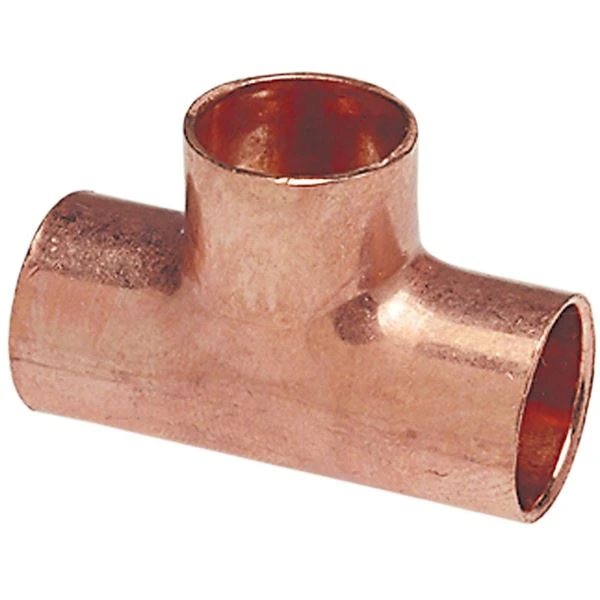

| Item | Reducing Tee |
| Application | Potable Water |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Tee |
| Body Material | Wrought Copper |
| Fitting Material | Wrot Copper |
| Fitting Side A Connection Type | Cup |
| Fitting Side B Connection Type | Cup |
| Fitting Side C Connection Type | Cup |
| Fitting Side C Copper Tube Size | 3/4" |
| Fitting Side C Tube Outer Dia. | 7/8" |
| Max. Pressure | 577 psi |
| Outside Dia. | 1 5/8" x 1 3/8" x 7/8" |
| Size | 1 1/2" x 1 1/4" x 3/4" |
| Specific Pipe Fitting Shape | Reducing Tee |
| Temp. Range | -20°F to +400°F |
| Fitting Side A Copper Tube Size | 1 1/2" |
| Fitting Side A Tube Outer Diameter | 1 5/8" |
| Fitting Side B Copper Tube Size | 1 1/4" |
| Fitting Side B Tube Outer Diameter | 1 3/8" |
| Fitting Side C Tube Outer Diameter | 7/8" |
| Maximum Operating Pressure | 577 psi @ 200°F |
| Maximum Operating Temperature | 400°F |
| Minimum Operating Temperature | 20°F |
| Resistance Properties | Dezincification Resistant |
| Specific Fitting Shape | Reducing Tee |
| Standards | ASME B16.22, ASTM B75 ALLOY C12200, MSS SP-104, MSS SP-109 (5 IN TO 8 IN), NFPA 99, NSF/ANSI 372, NSF/ANSI 61, UL 207 |
| Ship weight (kg) | 0.22 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 7.62 |
| HS code | 7412100000 |
| Country of Origin | US |
| Model | Body Material | Connection Type | Max. Pressure | Outside Dia. | Pipe Size | Temp. Range | Tube Size | Price | |
|---|---|---|---|---|---|---|---|---|---|
| 611RR 1/4x1/8x1/4 | Wrot Copper | C x C x C | 912 psi@100 Degrees F | 3/8" x 1/4" x 3/8" | - | -20 Degrees to 400 Degrees F | 1/4" x 1/8" x 1/4" | €21.21 | |
| 611RR 3/8x1/4x3/8 | Wrot Copper | C x C x C | 779 psi@100 Degrees F | 1/2" x 3/8" x 1/2" | - | -20 Degrees to 400 Degrees F | 3/8" x 1/4" x 3/8" | €24.02 | |
| 611RR 1/2x3/8x1/2 | Wrot Copper | C x C x C | 722 psi@100 Degrees F | 5/8" x 1/2" x 5/8" | - | -20 Degrees to 400 Degrees F | 1/2" x 3/8" x 1/2" | €19.31 | |
| 611RR 11/4x1x11/4 | Wrot Copper | C x C x C | 439 psi@100 Degrees F | 1-3/8" x 1-1/8" x 1-3/8" | - | -20 Degrees to 400 Degrees F | 1-1/4" x 1" x 1-1/4" | €39.24 | |
| 611RR 11/4x3/4x11/4 | Wrot Copper | C x C x C | 439 psi@100 Degrees F | 1-3/8" x 7/8" x 1-3/8" | - | -20 Degrees to 400 Degrees F | 1-1/4" x 3/4" x 1-1/4" | €38.25 | |
| 611RR 11/4x1/2x11/4 | Wrot Copper | C x C x C | 439 psi@100 Degrees F | 1-3/8" x 5/8" x 1-3/8" | - | -20 Degrees to 400 Degrees F | 1-1/4" x 1/2" x 1-1/4" | €26.16 | |
| 611RR 11/2x11/4x11/2 | Wrot Copper | C x C x C | 408 psi@100 Degrees F | 1-5/8" x 1-3/8" x 1-5/8" | - | -20 Degrees to 400 Degrees F | 1-1/2" x 1-1/4" x 1-1/2" | €44.29 |
