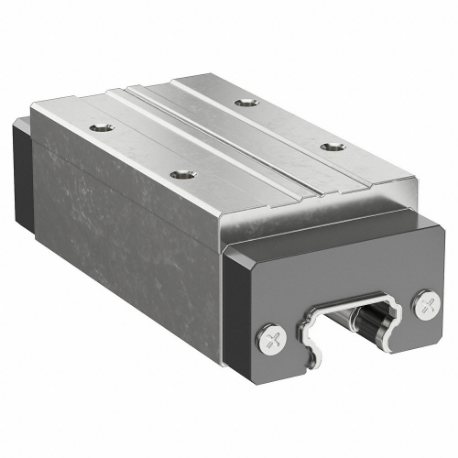

NB SGL 35HYFB-Z Block, SGL, Size 35, Long Carriage, Side Seal and Under Seal
Get it by Wednesday, Jun 18
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Block |
| Bearing Retention | Bearings Retained |
| Bearing Type | Ball |
| Carriage Height | 45 mm |
| Carriage Length | 116 mm |
| Carriage Material | Stainless Steel |
| Carriage Type | Ball |
| Carriage Width | 70 mm |
| Compatible Rail Type | Slide |
| Dynamic Load Capacity | 61.9 kN |
| Features | Side Seal and Under Seal |
| For Rail Width | 34 mm |
| For Use With | Ball Elements, Block Assembly, Main Body, Raceway Grooves, Return Caps |
| Includes Lubricator | Lubricator Included |
| Linear Guide Design | Long Carriage |
| Number Of Bearing Rows | 4 |
| Overall Height | 57 mm |
| Requires Lubrication | Lubricant Not Required |
| Seals | Seals Included |
| Series | SGL Series |
| Size | 35 |
| Static Load Capacity | 97.2 kN |
| Type | SGL Slide Guide |
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
