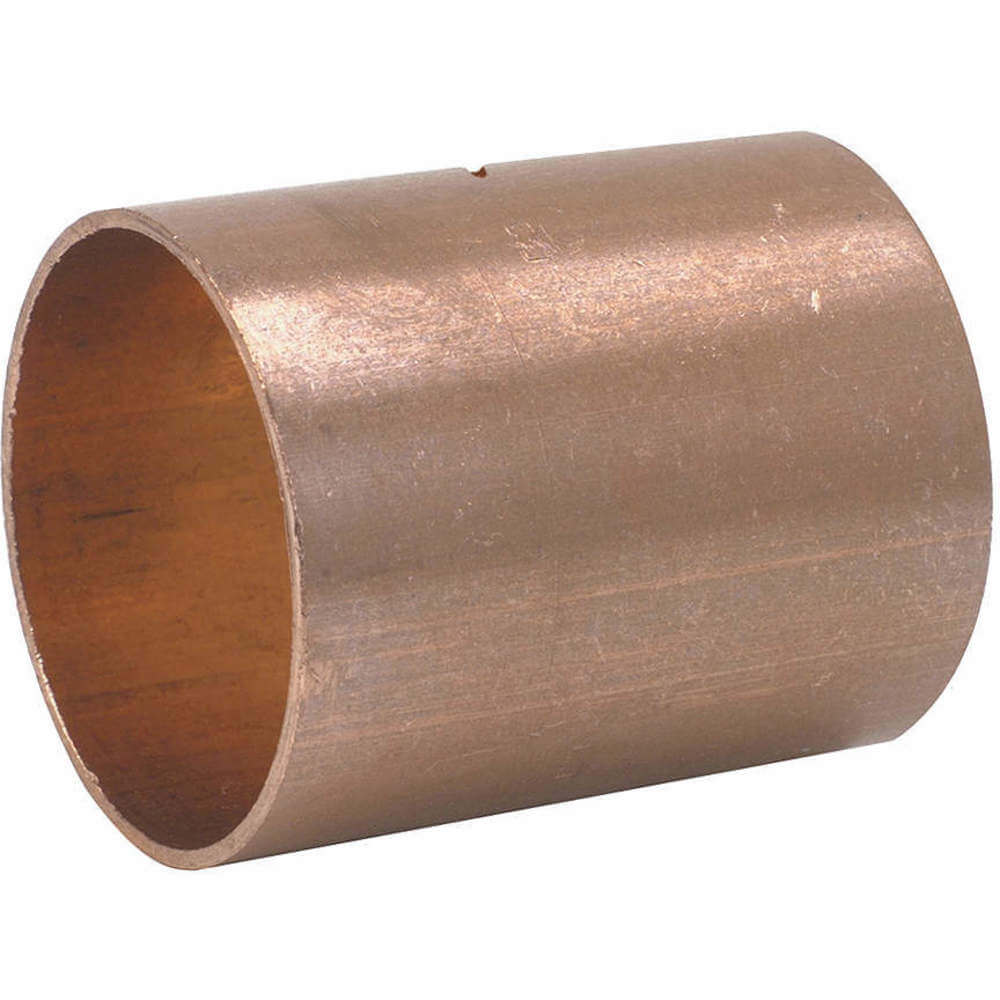

| Item | Coupling, Dimple Stop |
| Application | Potable Water |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Coupling |
| Body Material | Wrought Copper |
| Fitting Material | Wrot Copper |
| Fitting Side A Connection Type | Cup |
| Fitting Side A Copper Tube Size | 3/4" |
| Fitting Side A Tube Outer Dia. | 7/8" |
| Fitting Side B Connection Type | Cup |
| Fitting Side B Copper Tube Size | 3/4" |
| Fitting Side B Tube Outer Dia. | 7/8" |
| Includes Center Stop | Dimple Center Stop |
| Max. Pressure | 582 psi @ 100°F |
| Outside Dia. | 7/8" |
| Resistance Properties | Corrosion Resistant, Scaling-Resistant |
| Size | 3/4" |
| Specific Pipe Fitting Shape | Coupling |
| Temp. Range | -20°F to +400°F |
| Fitting Side A Tube Outer Diameter | 7/8" |
| Fitting Side B Tube Outer Diameter | 7/8" |
| Maximum Operating Pressure | 582 psi @ 100°F |
| Maximum Operating Temperature | 250°F |
| Minimum Operating Temperature | 20°F |
| Overall Length | 1 19/32" |
| Precleaned | Not Pre Cleaned |
| Specific Fitting Shape | Straight Coupling |
| Standards | ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, NSF/ANSI 61 ANNEX G |
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 4.06 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| HS code | 7412100000 |
| Country of Origin | US |
