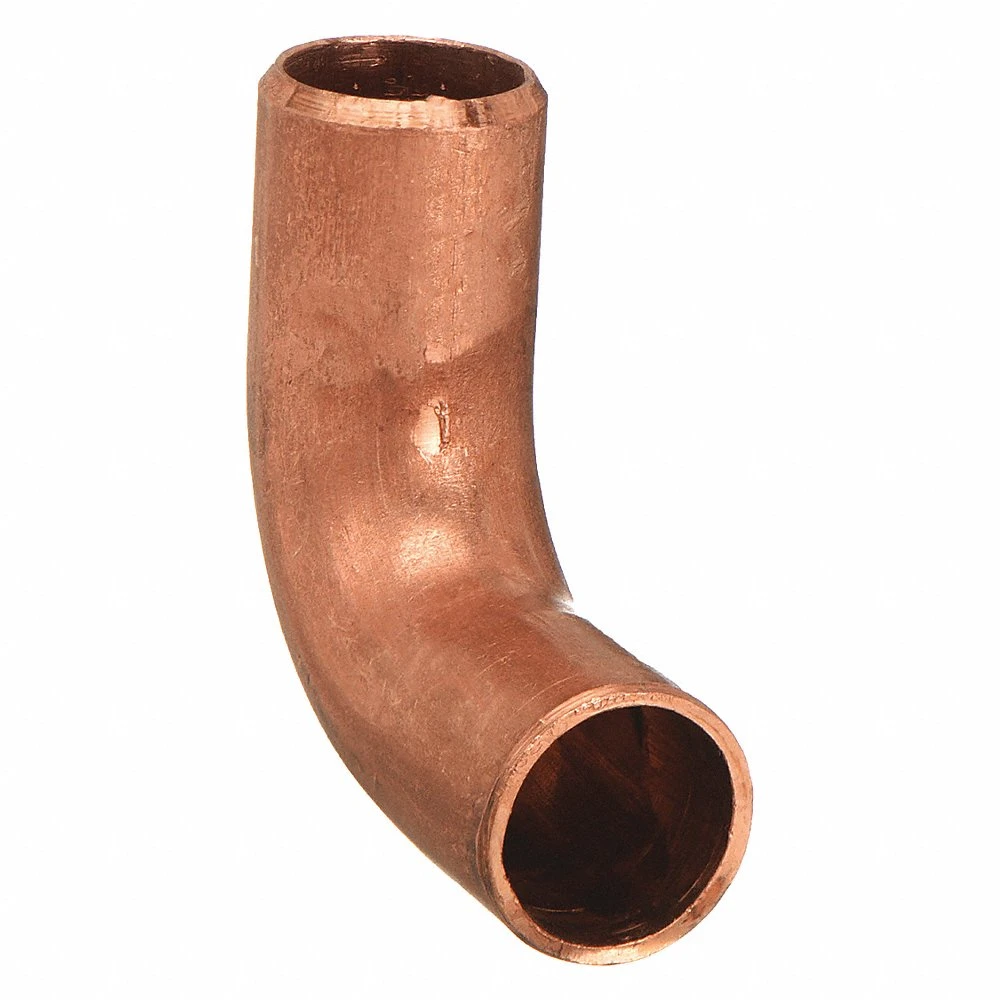

| Item | Elbow, 90 Degrees , Close Rough |
| Application | Potable Water |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Body Material | Wrought Copper |
| Fitting Material | Wrot Copper |
| Fitting Side A Copper Tube Size | 3/8" |
| Fitting Side A Tube Outer Dia. | 1/2" |
| Fitting Side B Copper Tube Size | 3/8" |
| Fitting Side B Tube Outer Dia. | 1/2" |
| Max. Pressure | 779 psi @ 100°F |
| Outside Dia. | 1/2" |
| Size | 3/8" |
| Temp. Range | -20°F to +400°F |
| Fitting Side A Connection Type | FTG |
| Fitting Side A Tube Outer Diameter | 1/2" |
| Fitting Side B Connection Type | FTG |
| Fitting Side B Tube Outer Diameter | 1/2" |
| Maximum Operating Pressure | 779 psi @ 100°F |
| Maximum Operating Temperature | 250°F |
| Minimum Operating Temperature | 20°F |
| Overall Length | 1 1/4" |
| Precleaned | Not Pre Cleaned |
| Specific Fitting Shape | 90° Close Rough Elbow |
| Standards | ASME B1.20.1, ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, NSF/ANSI 61 ANNEX G |
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 3.3 |
| Ship width (cm) | 3.3 |
| HS code | 7412200090 |
| Country of Origin | US |
