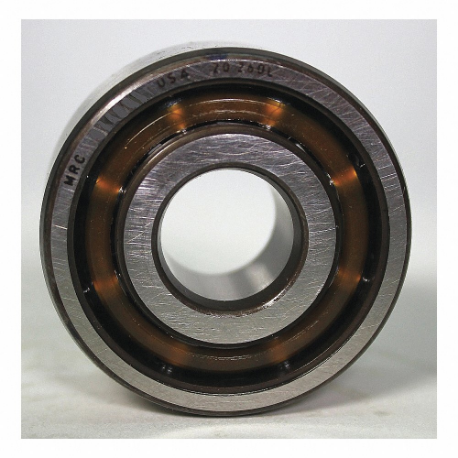

| Item | Angular Contact Ball Bearing |
| Bearing Type | Single Bearing |
| Bore Dia. | 10 mm |
| Cage Material | Steel |
| Closure | Open |
| Contact Angle | 30° |
| Dynamic Load Capacity | 7610N |
| Housing Fillet Radius | 0.64 mm |
| Load Direction | Radial |
| Matched Bearing Type | Not Matched/Single Bearing |
| Max. Speed | 22000 RPM |
| Max. Temp. | 125°C |
| Min. Temp. | -20°C |
| Number Of Rows | 2 |
| Outside Dia. | 30 mm |
| Ring Material | Alloy Steel |
| Ring Material Grade | Grade AISI 52100 |
| Static Load Capacity | 4300N |
| Width | 14.3 mm |
| Abec Rating | 1 |
| Bearing Industry Number | 5200 |
| Bore Diameter | 10 mm |
| Dynamic Radial Load Capacity | 7610N |
| Maximum Speed | 22000 RPM |
| Maximum Temperature | 125°C |
| Minimum Temperature | -20°C |
| Outside Diameter | 30 mm |
| Overall Width | 14.3 mm |
| Static Radial Load Capacity | 4300N |
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
