MORSE DRUM

MORSE DRUM 456-1-50-CE CE-marked Hydra-Lift Drum Roller, 220v, 50Hz, 1 Phase, 454 kg Cap

Item: AG7GUBModel: 456-1-50-CE

See variants (1)

Limited Availability

Due to weight and dimension restrictions, please request a shipping quote

€13,080.38 /unit

Request a Quote

Payment

Product Specifications:

Item	Hydra-Lift Drum Roller
Amps	6.2A
Capacity Dry	400 lbs.
Capacity Liquids	1000 lbs.
Drum Dia.	6" to 26"
Drum Height	0" to 40"
Drum Material	Plastic, Steel
Drum Rpm	4-14 RPM
Frequency	50 Hz
Hp	1 hp
Lift Style	Hand Truck Or Hoist
Max. Hydraulic Pressure	2100 psi
Max. Operating Temp.	130°F
Motor Enclosure Design	Totally Enclosed Fan Cooled
Phase	1
Speed Type	Variable
Tilt Style	Ergonomic Powered Hydraulics
Timer	0 hr. to 16 hrs.
Type	Stationary
Voltage	220V AC

1-Phase / 220v model of the Morse Drum 456 CE-marked hydraulic drum roller. Similar to the Hydra-lift series but with CE certification for use in European markets
Perfect for rolling the closed contents of a steel drum up to 208 liter (55 gallon) in size. Optional POLY-456 accessory is available for rolling a plastic drum
Powered hydraulic tilt takes an upright drum and moves into a horizontal position for rolling. Uses eight neoprene wheels to rotate the drum at a 4 - 16 RPM variable speed

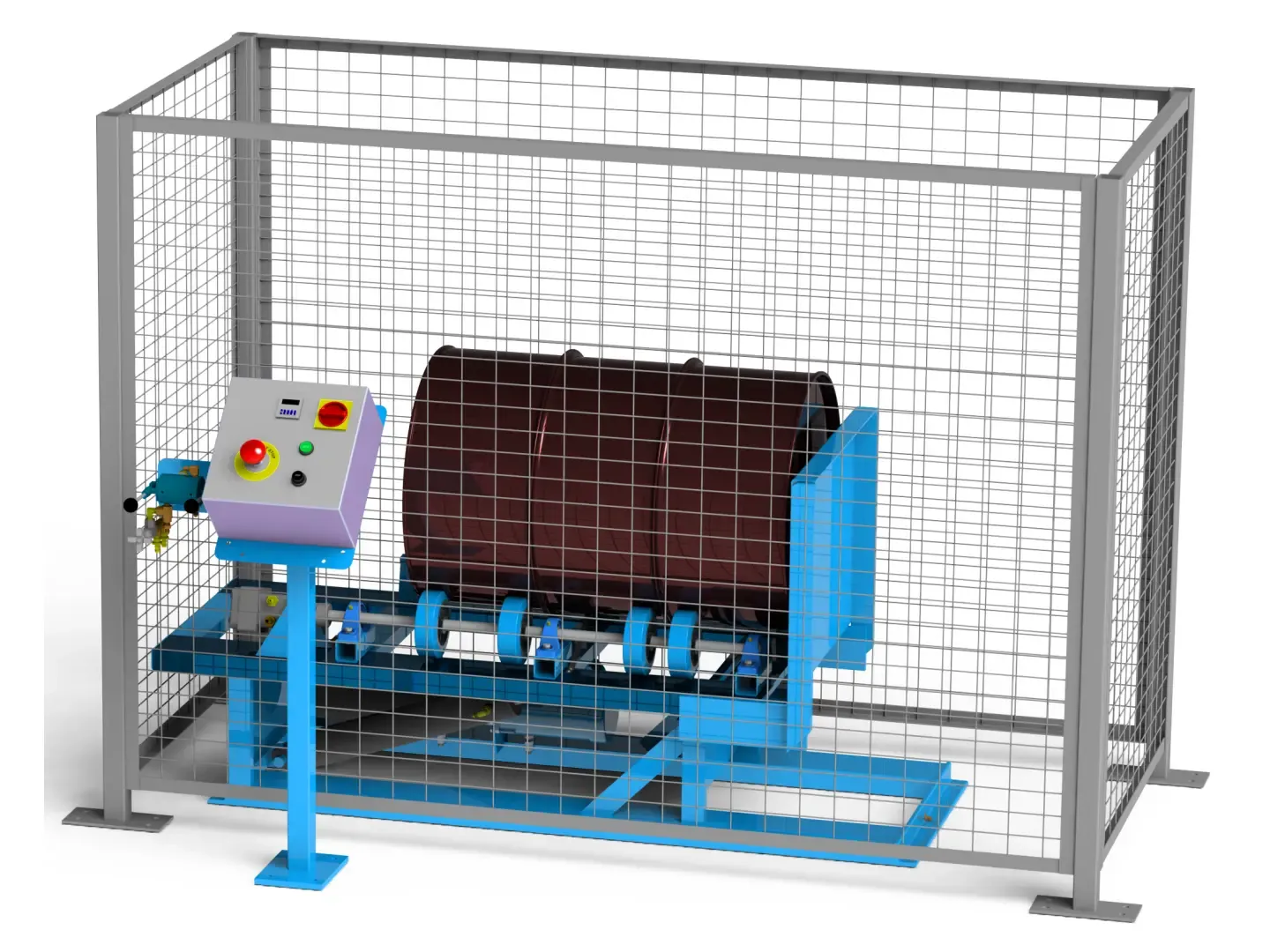

Complete package that includes the drum roller, safety enclosure with interlock, external NEMA 4/12 controls and export crate allowing for sea transport if desired
Mixing a closed drum eliminates contamination risk, spillage and clean up costs + improves worker safety by reducing exposure to drum contents. This CE-marked drum roller is designed for use in non-hazardous environments
