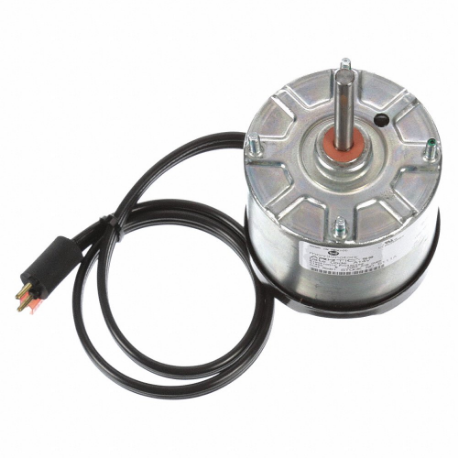

| Item | Unit Bearing Motor |
| Ambient Temp. | 25°C |
| Bearing Type | Ball |
| Body Dia. | 3 5/16" |
| Bolt Circle Dia. | 2 7/8" |
| Duty Cycle | Continuous |
| Features | Thermally Protected, Totally Enclosed Air Over |
| Flange Type | Non Ventilated |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 1.1A |
| Full Load Amps @ 50 Hz | 1.1A |
| Hp | 1/15 hp |
| Length Less Shaft | 3 13/16" |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal/Vertical Shaft Down |
| Motor Mounting Type | Stud |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Clockwise Lead End |
| Motor Sub Application | Refrigerator/Freezer |
| Motor Thermal Protection | Auto |
| Motor Type | ECM |
| Mounting Stud Length | 7/16" |
| Mounting Stud Pattern | 2 7/8" x 2 7/8" |
| Mounting Type | Stud |
| Nameplate Rpm | 1550/800 RPM |
| No. Of Speeds | 2 |
| No. Of Studs | 4 |
| Number Of Speeds | 2 |
| Number Of Studs | 4 |
| Output Wattage | 52 W |
| Output Watts | 52 W |
| Overall Length | 6 7/16" |
| Plug Type | Round 2 Pin |
| Service Factor | 1 |
| Shaft Dia. | 5/16" |
| Shaft Length | 2 5/8" |
| Stud Length | 7/16" |
| Stud Pattern | 2 7/8" x 2 7/8" |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Frame | Non-Standard |
| Hz | 50/60 Hz |
| Ins. Class | Class B |
| Max. Ambient Temp. | 25°C |
| Motor Design | ECM |
| Motor Flange Type | Non Ventilated |
| Phase | Single |
| Standards | CSA, UL |
| Stud Quantity | 4 |
| Weight | 4 lbs. |
| Ship weight (kg) | 1.8 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
