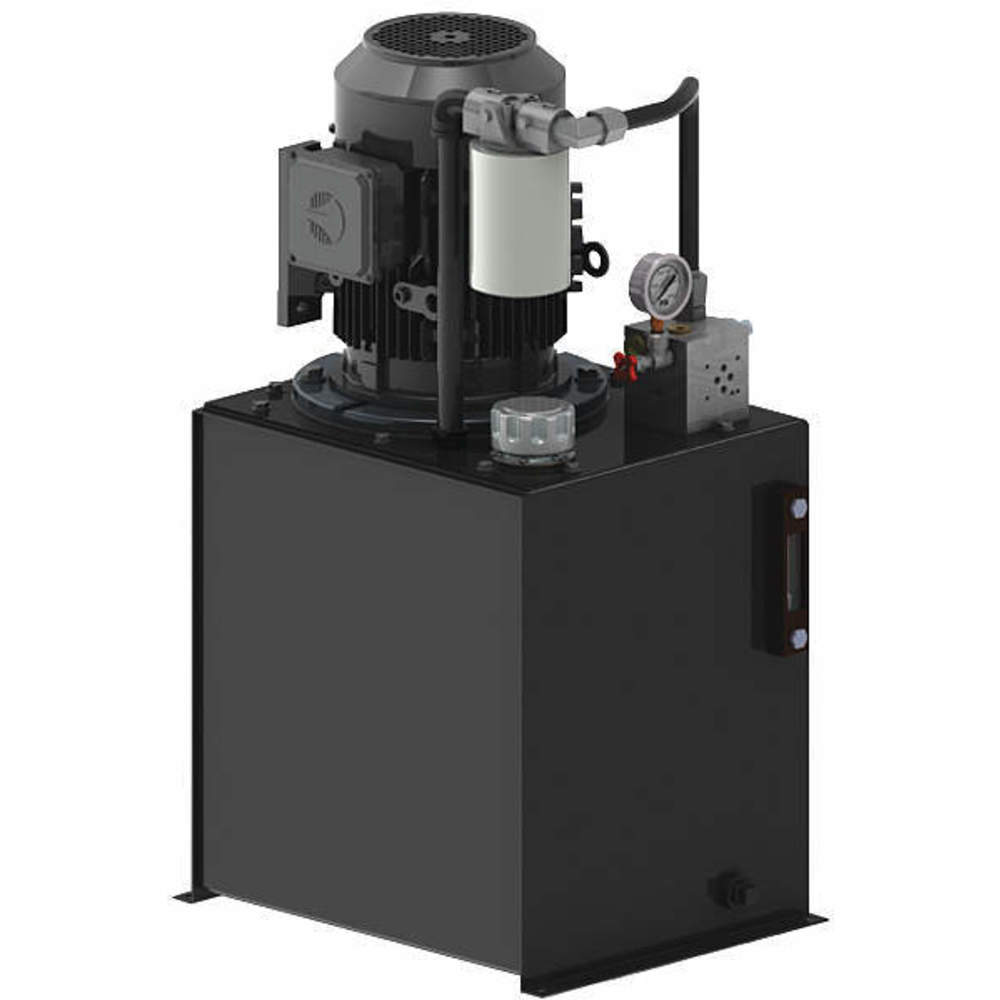

MONARCH T3VC405C02F1-01 Power Unit 15Gallon 208-230/460VAC 1600psi
Get it by Tuesday, Jun 17
€4,902.97 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hydraulic Power Unit |
| Built-in Features | Return Filter, Safety Relief Valve , Safety Relief Valve, Return Filter |
| Frame Design - Hydraulic Power Units | Standard |
| Full Load Amps | 13.7/12.4/6.2A |
| Hydraulic Pump Type | Vane |
| Hz | 50/60 Hz |
| Max. Pressure | 1600 psi |
| Mounting | Vertical |
| Mounting Orientation - Power Units | Vertical |
| Mounting Position | Vertical |
| Nominal Flow | 4.5 GPM |
| Number Of Phases | 3 |
| Number Of Stages | 1 |
| Overall Length | 20" |
| Overall Width | 17" |
| Phase | 3 |
| Reservoir Capacity | 15 gal. |
| Voltage | 208-230/460V AC |
| Circuit Design | Single or Double Acting |
| Hertz | 50/60 Hz |
| Hp | 5 hp |
| Nfpa Size | D03 |
| Overall Height | 36" |
| Power Source - Power Units | AC Power |
| Pressure Port Thread Size | 3/4"-16 (SAE 8) |
| Return Port Thread Size | 7/8"-14 (SAE 10) |
| Rpm | 1800 RPM |
| Ship weight (kg) | 78.75 |
| Ship height (cm) | 109.22 |
| Ship length (cm) | 57.15 |
| Ship width (cm) | 50.8 |
| Country of Origin | CA |
| Product | Model | Full Load Amps | Hp | Max. Pressure | Mounting | Number Of Stages | Overall Height | Overall Length | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
T92C405C93F0-01 | 13.7-12.4/6.2A | 5 | 2500 psi | Vertical | 2 | 35" | 20" | 15" | €4,157.27 | |
 |
T56C405R02S0-01 | 13.7-12.4/6.2A | 5 | 3000 psi | Vertical | 1 | 35" | 20" | 17" | €3,192.20 | |
 |
T58C405R02S0-01 | 13.7-12.4/6.2A | 5 | 2000 psi | Vertical | 1 | 35" | 20" | 17" | €3,251.60 | |
 |
T16C405C02F0-03 | 13.7-12.4/6.2A | 5 | 1550 psi | Vertical | 1 | 35" | 20" | 17" | €3,489.16 | |
 |
T64C405C02F0-01 | 13.7-12.4/6.2A | 5 | 1400 psi | Vertical | 1 | 35" | 20" | 17" | €3,381.36 | |
 |
T65C355A03B0-01 | 8.5-7.6/3.8A | 3 | 600 psi | Vertical | 1 | 35" | 20" | 17" | €3,281.29 | |
|
T65C405C03B0-01 | 13.7-12.4/6.2A | 5 | 1000 psi | Vertical | 1 | 35" | 20" | 17" | €3,622.77 |
