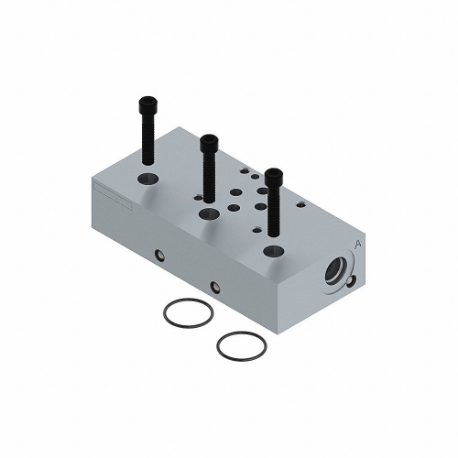

| Item | Valve Manifold |
| Body Material | Aluminum |
| For Media | Oil |
| For Use With | DO3 Directional Valves |
| Height | 1.219" |
| Includes | (2) O-Rings, D03 Manifold Mounting Pad, Mounting Hardware |
| Length | 5.172" |
| Max. Pressure | 3000 psi |
| No. Of Stations | 1 |
| Number Of Stations | 1 |
| Port Connection Gender | Female |
| Temp. Range | -20°F to +130°F |
| Valve Port Size (sae) | #6 |
| Width | 2.453" |
| Fluid Service | Oil |
| Maximum Pressure | 3000 psi |
| Nfpa Size | D03 |
| Operating Temperature - Maximum | 130°F |
| Operating Temperature - Minimum | -20°F |
| Overall Height | 1.219" |
| Overall Length | 5.172" |
| Overall Width | 2.453" |
| Port Connection Size | #6 |
| Port Connection Type | SAE 45°Flare |
| Ship weight (kg) | 0.65 |
| Ship height (cm) | 3.1 |
| Ship length (cm) | 13.14 |
| Ship width (cm) | 6.23 |
| Country of Origin | US |
