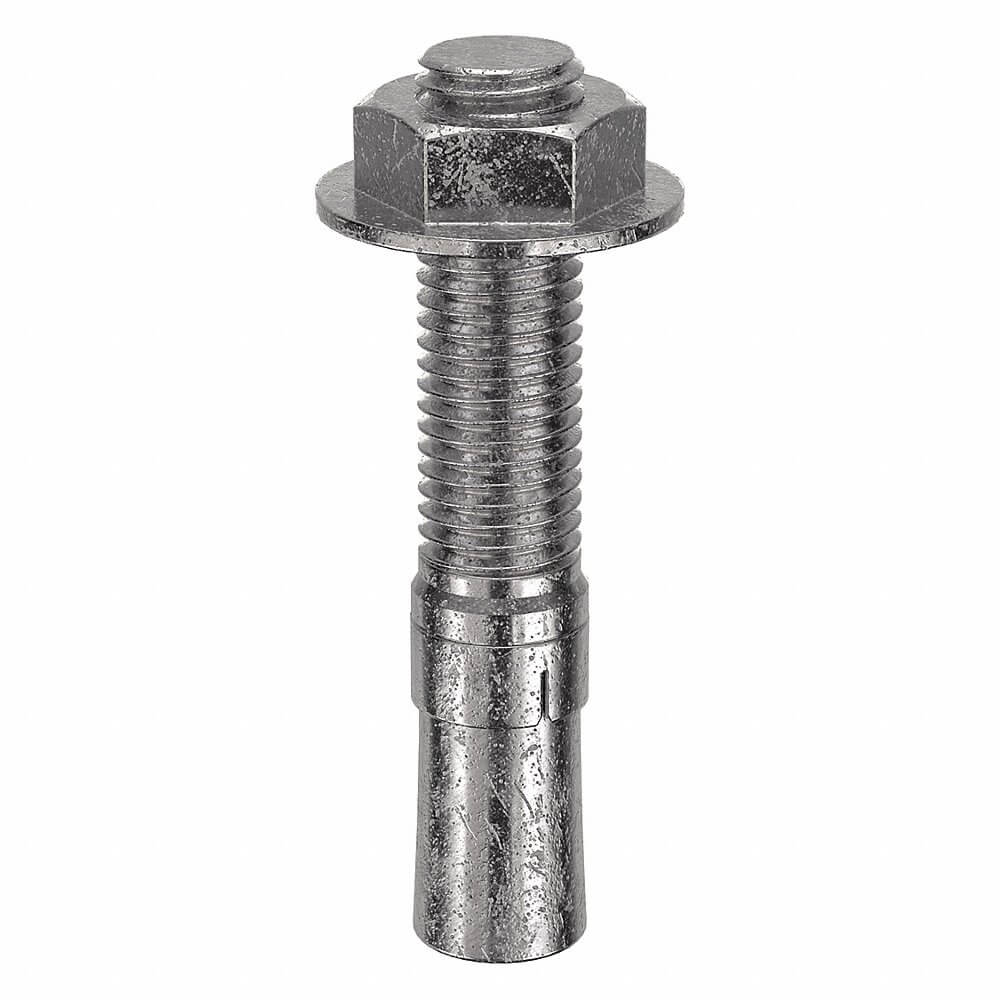

| Item | Wedge Anchor |
| Anchor Dia. | 3/4" |
| Anchor Length | 4 1/4" |
| Finish | Plain |
| Grade | 304 |
| Includes | Nut And Washer |
| Material | Stainless Steel |
| Max. Work Thickness | 7/8" |
| Min. Embedment | 3 3/8" |
| System Of Measurement | Imperial |
| Thread Length | 2 3/8" |
| Thread Size | 3/4"-10 |
| Ultimate Shear | 15126 lbs. |
| Ultimate Tension | 11975 lbs. |
| Ultimate Tension In 3000 Psi Concrete | 9267 lbs. |
| Ultimate Tension In 4000 Psi Concrete | 11975 lbs. |
| Wedge Anchor Type | Standard |
| Anchor Diameter | 3/4" |
| Compatible Material | Concrete |
| Display Qty | 5 |
| Drill Bit Size | 3/4" |
| Icc Approved For Cracked Concrete | No |
| Icc Approved For Un-cracked Concrete | Yes |
| Industry Standards | FM Approved, ICC ESR-3782 C-STL, ZP 1/4” SS, ROHS Compliant Except for Grade 5, UL Listed |
| Material Grade/class | 18-8 |
| Maximum Installation Torque | 200 lbs.-ft. |
| Maximum Material Thickness | 7/8" |
| Maximum Ultimate Shear Strength | 15126 lbs. |
| Maximum Ultimate Tension Strength | 11975 lbs. |
| Minimum Installation Depth | 3 3/8" |
| Minimum Installation Torque | 100 lbs.-ft. |
| Minimum Material Thickness | 6" |
| Nut Width | 1.125" |
| Overall Length | 4 1/4" |
| Seismic Approved | No |
| Ultimate Shear Strength (4,000 Psi Concrete) | 15126 lbs. |
| Ultimate Tension Strength (4,000 Psi Concrete) | 11975 lbs. |
| Washer Outside Diameter | 1.469" |
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 3.05 |
| Ship length (cm) | 12.45 |
| Ship width (cm) | 11.43 |
| HS code | 7316000000 |
| Country of Origin | US |
