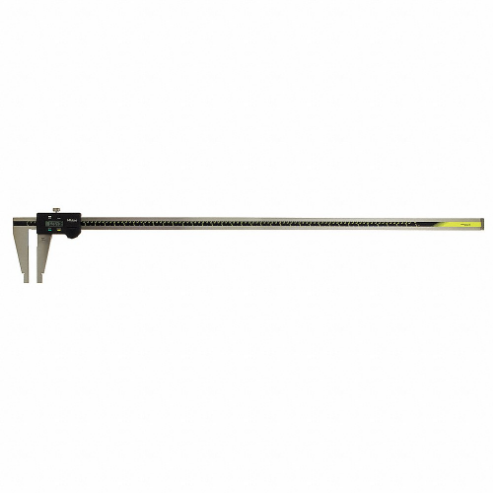

| Item | Absolute Electronic Digital Caliper |
| Absolute Positioning | Yes |
| Accuracy | -0.003" to +0.003" |
| Battery Included | Yes |
| Caliper Grouping | Digital Caliper |
| Caliper Material | Stainless Steel |
| Case | Wooden |
| Case Material | Wooden |
| Case Type | Wooden |
| Coolant Resistant | No |
| Data Output Connection Type | Digimatic |
| Data Output Type | Cabled |
| Depth Rod Shape | Rectangular |
| Dust Resistant | Yes |
| Function | Origin-Set, Zero, Data Output, Inch/Mm, Alarm Low Voltage, Counting Value Composition Error |
| Graduations (upper Scale) | 40" |
| Includes Case | Yes |
| Ip Rating | Not Rated |
| Jaw Actuation Type | Slide |
| Jaw Depth | 5 33/64" |
| Jaw Material | Stainless Steel |
| Left-handed Operation | No |
| Linear Encoder Type | Electrostatic Capacitance |
| Long Form Calibration Certificate | No |
| Material | Stainless Steel |
| Max. Measurement | 40" |
| Measurements | Inside, Outside |
| Measures Depth | No |
| Measures Inside Dimension | Yes |
| Measures Outside Dimension | Yes |
| Measures Step | No |
| Range | 0" to 40" |
| Spc Output | Yes |
| System Of Measurement | Imperial/Metric |
| Water Resistant | No |
| With Locking Nut | Yes |
| Battery Size | SR44 |
| Compatible Spc Cable | Mfr. No. 959149, Mfr. No. 959150 |
| Dimension Type | Inch, Metric |
| Display Type | LCD |
| Functions | Origin-Set, Zero, Data Output, in./mm, Alarm: Low Voltage, Counting Value Composition Error |
| Graduations - Lower Scale | 0" |
| Graduations - Upper Scale | 40" |
| Included Certification | TUV Rheinland Certification |
| Includes Battery | Yes |
| Jaw Shape | Nib-Style |
| Maximum Measurement - Inch | 40" |
| Maximum Measurement - Mm | 1000 mm |
| Minimum Measurement - Fractional Inch | 0" |
| Minimum Measurement - Inch | 0" |
| Minimum Measurement - Mm | 0 mm |
| Repeatability | 0.0005"/0.01 mm |
| Resolution | 0.0005" |
| Standards | TUV RHEINLAND |
| Ship weight (kg) | 8.2 |
| Ship height (cm) | 11.18 |
| Ship length (cm) | 133.35 |
| Ship width (cm) | 33.53 |
| HS code | 9017304000 |
| Country of Origin | JP |
| Product | Model | Accuracy | Case | Item | Jaw Depth | Material | Range | Resolution | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
550-225-10 | +/-0.002" | Molded Plastic | Absolute Electronic Digital Caliper | 3.94" | Stainless Steel | 0 to 24"/0 to 600 mm | 0.0005"/0.01 mm | €1,664.76 | |
 |
550-311-10 | +/-0.001" | Plastic | Digital Caliper | 50mm | Hardened Steel | 0 to 8"/0 to 200 mm | 0.01mm | €788.34 | |
 |
550-223-10 | - | - | Digital Caliper | - | - | - | - | €1,380.23 |
