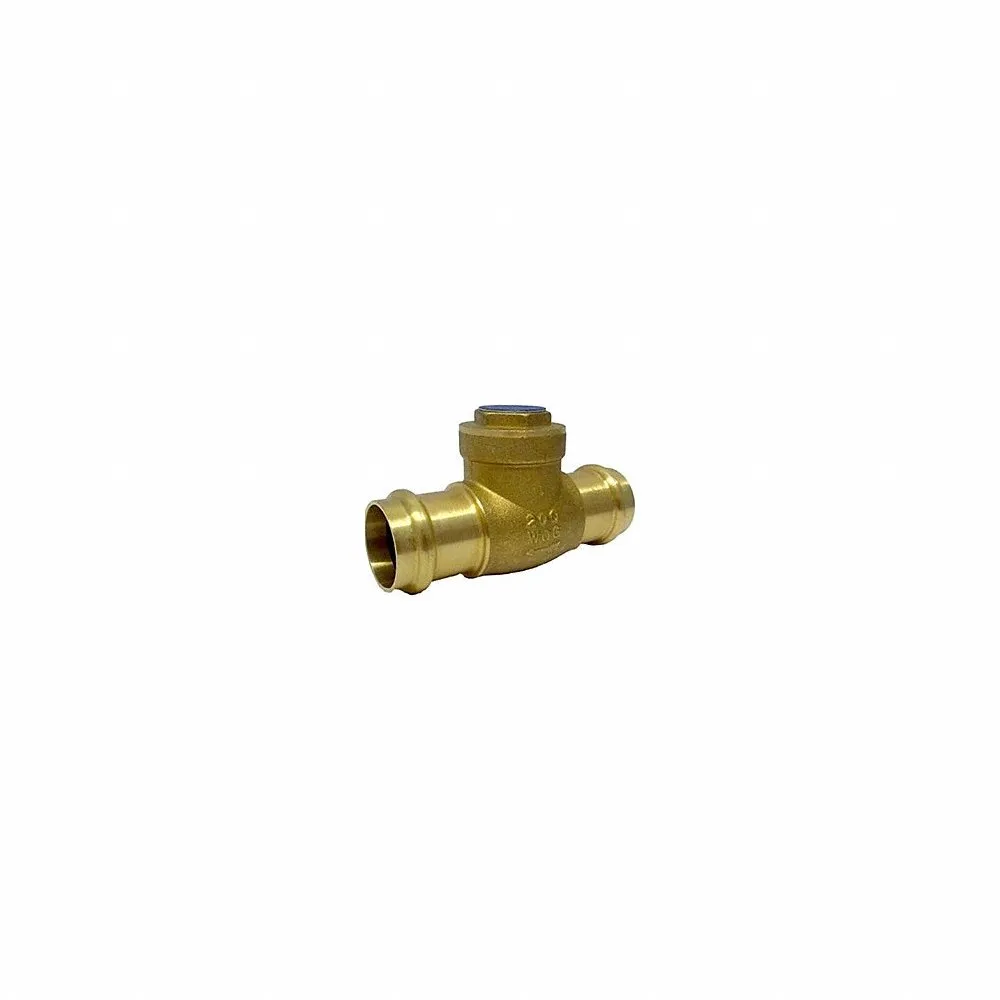

MILWAUKEE VALVE UP0969000114 Swing Check Valve, Low Lead Brass, 1 1/4 Inch Valve Size
€194.53 /unit
Request a Quote
Payment
Payment
| Item | Swing Check Valve |
| Application - Valves | Portable Water |
| Cap To Inlet Center | 1.99" |
| Mounting Orientation | Horizontal |
| 3-a Compliance | Not Rated |
| Body Material | Brass |
| Check Mechanism | Swing |
| Connection Size - Side 1 | 1 1/4" |
| Connection Size - Side 2 | 1 1/4" |
| Connection Type | Press x Press |
| Connection Type - Side 1 | Press |
| Connection Type - Side 2 | Press |
| Cracking Pressure | 0.5 psi |
| Disc Material | Brass |
| Flow Coefficient (cv) | 31 |
| Flow Rate | 31 GPM |
| For Media | Water |
| Height - Cap To Inlet Center | 2" |
| Hex Size | 2 15/16" |
| Includes Counterweight | No Counterweight |
| Max. Pressure (cwp) | 200 psi |
| Max. Pressure (steam) | Not Rated |
| Media Temp. Range | -20°F to 150°F |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Operating Temperature - Maximum | 150°F |
| Operating Temperature - Minimum | -20°F |
| Overall Length | 4.97" |
| Pipe Size | 1 1/4" |
| Seal Material | Brass |
| Seat Material | Brass |
| Silent Check | Standard |
| Standards | NSF/ANSI 372 |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Inline |
| Valve Series | UP969 |
| Ship weight (kg) | 0.61 |
| Ship height (cm) | 5.05 |
| Ship length (cm) | 12.62 |
| Country of Origin | US |
| Model | Connection Type | Cracking Pressure | Length | Material | Max. Steam Pressure | Max. Temp. | Max. Water Pressure | Mounting Position | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| UP0967000012 | Threaded | 0.5 psi | 2.125" | Low Lead Brass | - | 150 Degrees F | - | Multi Positional | €103.95 | |
| UP0967000034 | Threaded | 0.6 psi | 2 5/16" | Low Lead Brass | - | 151 Degrees F | - | Multi Positional | €110.51 | |
| UP0967000100 | Threaded | 0.7 psi | 2.75" | Low Lead Brass | - | 152 Degrees F | - | Multi Positional | €145.48 | |
| UP0967000114 | Threaded | 0.8 psi | 3.125" | Low Lead Brass | - | 153 Degrees F | - | Multi Positional | €243.14 | |
| UP0967000112 | Threaded | 0.9 psi | 3.5" | Low Lead Brass | - | 154 Degrees F | - | Multi Positional | €276.79 | |
| UP0967000200 | Threaded | 0.10 psi | 4 9/32" | Low Lead Brass | - | 155 Degrees F | - | Multi Positional | €427.84 | |
| UP0968000012 | Solder | 0.11 psi | 2 17/32" | Low Lead Brass | - | 156 Degrees F | - | Multi Positional | €97.01 |
