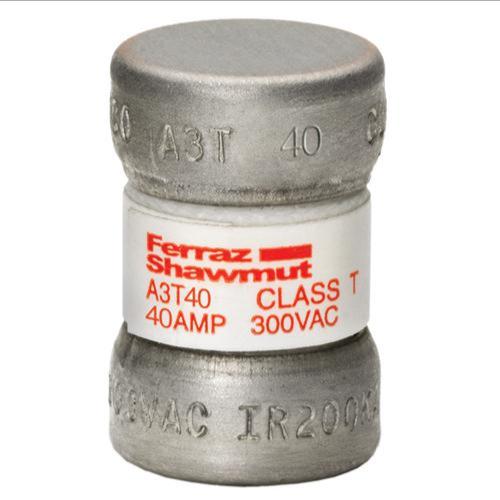

MERSEN FERRAZ A3T40 Fuse, Fast Acting, 300V, 40A, Class T, 1 Pole
€22.90 /unit
Request a Quote
Payment
Payment
| Item | Fuse |
| Ac Voltage | 300V AC |
| Amps | 40A |
| Body Material | GMG |
| Class | Class T |
| Diameter | 14/25" |
| Frame Type | A3T |
| Length | 22/25" |
| Mounting | Clip |
| Number Of Poles | 1 |
| Speed Type | Fast Acting |
| Voltage | 300V |
| Voltage Type | AC |
| Ac Voltage Rating | 300V AC |
| Body Style | Cylindrical |
| Compatible Fuse Block Series | 3TFB, 6TFB |
| Dc Voltage Rating | 160V DC |
| Element | Single |
| Equivalent Brand And Series | Bussmann JJN, Edison TJN, Littelfuse JLLN, Mersen A3T |
| Equivalent Series | A3T, JJN, JLLN, TJN |
| Fits Fuse Block Style | Nonrejection |
| Fuse Size | 7/8" L x 9/16" dia. |
| Interrupt Rating | 200 kA at 300V AC, 50 kA at 160V DC |
| Series | A3T Series |
| Speed | Very Fast Acting |
| Standards | UL/CSA |
| Visual Indication | Nonindicating |
| Ship weight (kg) | 0.01 |
| Ship length (cm) | 2.24 |
| Ship width (cm) | 1.42 |
| Country of Origin | MX |
| Product | Model | Amps | Current Rating | Diameter | Length | Mounting | Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
A3T125 | - | 125A | 1.06" | 2.44" | Bolted | Fast-Acting | €51.63 | |
 |
A3T450 | - | 450A | 1.62" | 3.06" | Bolted | Fast Acting | €172.95 | |
 |
A3T700 | - | 700A | 2.08" | 3.38" | Bolted | Fast Acting | €643.76 | |
 |
A3T1 | 1A | 1A | 0.41" | 0.88" | Clip | Fast Acting | €18.71 | RFQ
|
 |
A3T10 | 10A | 10A | 0.41" | 0.88" | Clip | Fast Acting | €26.62 | |
 |
A3T100 | 100A | 100A | 0.81" | 2.16" | Bolted | Fast Acting | €43.94 | |
 |
A3T1000 | 1000A | 1000A | 2.52" | 4" | Bolted | Fast Acting | €710.44 |
