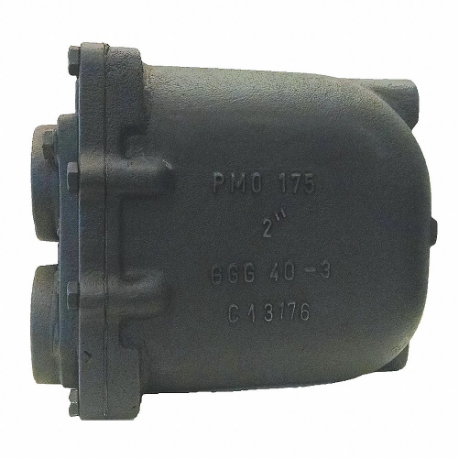

MEPCO MLFT2175-8G Steam Trap, 2 Inch NPT Connections, 16 1/2 Inch End to End Length, 175 Psi Max. Op Psi
Get it by Wednesday, Jun 18
€2,759.35 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Steam Trap |
| Application | Steam Lines |
| Condensate Capacity | 56609 lbs./hr. |
| Configuration | C Pattern |
| Disc Material | Stainless Steel |
| Distance Between Inlet And Outlet Port | 16 1/2" |
| Downstream Pressure Range | 0 psi to 120 psi |
| End To End Length | 16 1/2" |
| Float Material | Stainless Steel |
| Fnpt Size | 2" |
| Includes Strainer | Strainer Not Included |
| Installation Orientation | Horizontal |
| Max. Operating Pressure | 175 psi |
| Max. Temp. | 450°F |
| Npt Inlet | 2" |
| Npt Outlet | 2" |
| Npt Port | 2" |
| Pipe Configuration | Single Inlet, Outlet |
| Port Connection Gender | Female |
| Port Connection Size | 2" |
| Port Types Included | Inlet, Outlet |
| Pressure Air Vent | Releases Air And Non-Condensable Gases That Adversely Affect The Heat Transfer Of A Steam System |
| Trap Position | Horizontal |
| Type | Float And Thermostatic |
| Allowable Temperature - Maximum | 450°F |
| Allowable Temperature - Minimum | 35°F |
| Body Material | Cast Iron |
| Includes Air Vent | Air Vent Included |
| Maximum Capacity At Maximum Pressure Load | 56609 lbs./hr. @ 175 psi |
| Operating Pressure - Maximum | 175 psi |
| Port Connection Type | NPT |
| Steam Trap Type | Float & Thermostatic |
| Ship weight (kg) | 27.9 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
