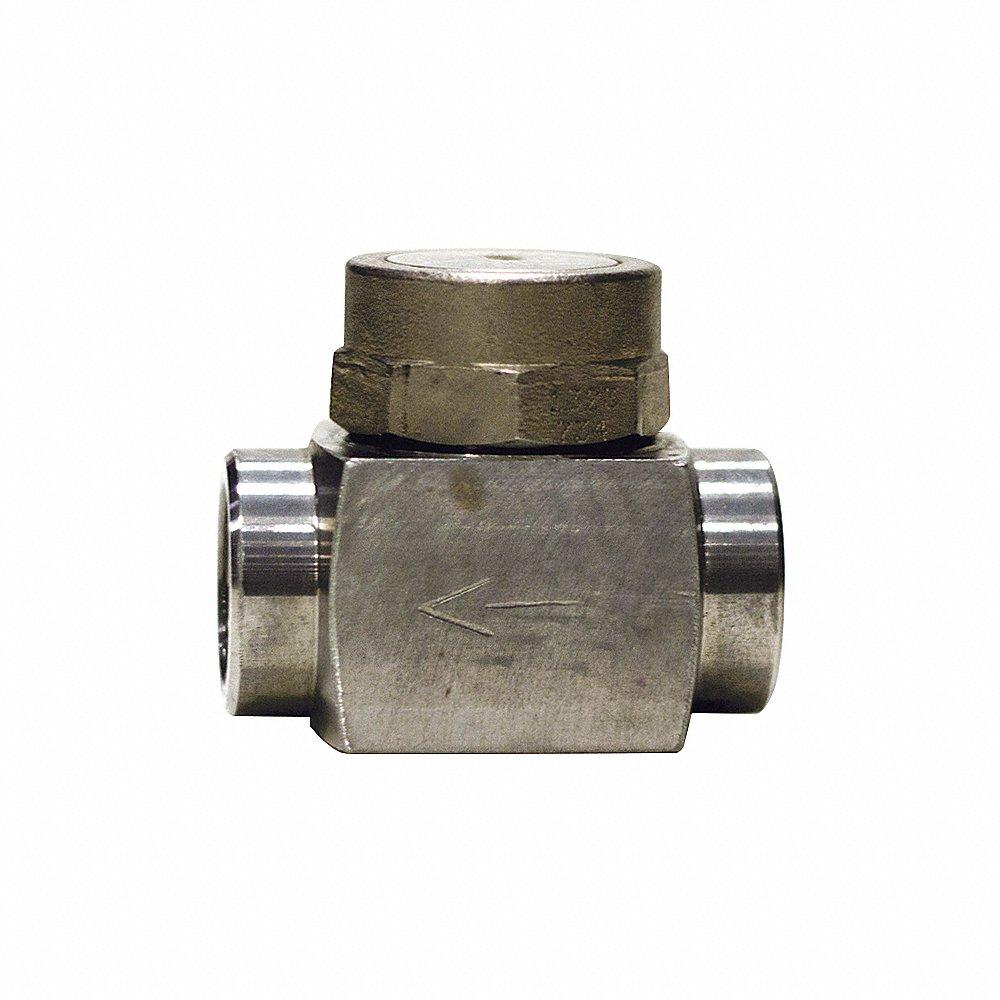

| Item | Steam Trap |
| Actuator Material | Stainless Steel |
| Application | Drip Legs, Process Equipment, Steam Tracing |
| Cap Material | Stainless Steel |
| Condensate Capacity | 1200 lbs./hr. |
| Configuration | In-Line |
| Disc Material | Stainless Steel |
| Distance Between Inlet And Outlet Port | 2 11/16" |
| Downstream Pressure Range | 0 psi to 595 psi |
| End To End Length | 2 11/16" |
| Fnpt Size | 1/2" |
| Includes Strainer | Strainer Not Included |
| Max. Operating Pressure | 600 psi |
| Max. Temp. | 800°F |
| Npt Inlet | 1/2" |
| Npt Outlet | 1/2" |
| Npt Port | 1/2" |
| Operating Pressure - Minimum | 4 psi |
| Overall Depth | 2 3/8" |
| Overall Length | 2 11/16" |
| Overall Width | 1 9/16" |
| Pipe Configuration | Straight |
| Port Connection Gender | Female |
| Port Connection Size | 1/2" |
| Port Types Included | Inlet, Outlet |
| Pressure Air Vent | Releases Air And Non-Condensable Gases That Adversely Affect The Heat Transfer Of A Steam System |
| Resistance Properties | Corrosion Resistant, Fatigue Resistant |
| Steam Trap Type | Thermodynamic |
| Trap Position | Horizontal |
| Type | Disc |
| Body Material | Stainless Steel |
| Installation Orientation | Horizontal/Vertical |
| Operating Pressure - Maximum | 600 psi |
| Operating Temperature - Maximum | 800°F |
| Port Connection Type | NPT |
| Self-draining | Self Draining If Installed Vertically |
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 6.03 |
| Ship length (cm) | 6.83 |
| Ship width (cm) | 3.97 |
| Country of Origin | US |
