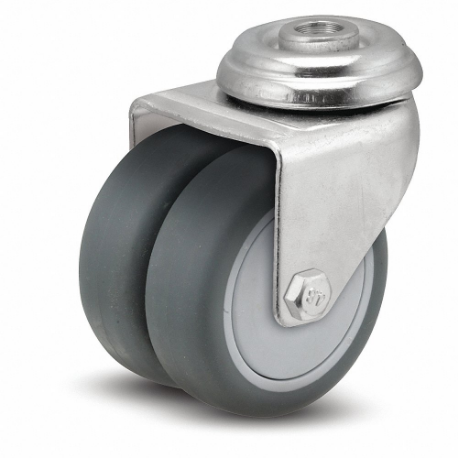

MEDCASTER DW03TPP100SWHK01 General Purpose Bolt-Hole Caster, 3 Inch Wheel Dia, 220 lb, 3 15/16 Inch Mounting Height
Get it by Friday, Jun 13
Request a Quote
Payment
Get it by Friday, Jun 13
Payment
| Item | Caster |
| Application | Medical |
| Bolt Hole Dia. | 1/2" |
| Brake Type | No Brake Included |
| Caster Mounting Type | Hollow Kingpin |
| Caster Stem Type | Hollow Kingpin |
| Caster Sub-type | Kingpinless Swivel |
| Core Color | Gray |
| Frame Color | Silver |
| Frame Finish | Chrome Plated |
| Frame Material | Steel |
| Load Rating | 220 lbs. |
| Load Rating Range | 0 lbs. to 299 lbs. |
| Mounting Height | 3.938" |
| Non-marking | Yes |
| Number Of Wheels | 2 |
| Operating Temp. Range | -30°F to +250°F |
| Overall Height | 3.938" |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Tread Material, Wheel Material | Thermoplastic Rubber |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Core Material | Nylon |
| Wheel Core Type | Solid |
| Wheel Dia. | 3" |
| Wheel Width | 7/8" |
| Wheel/tread Color | Gray |
| Wheel/tread Hardness | 85 Shore A |
| Wheel/tread Hardness Rating | Soft |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Operating Temperature Range | -30°F to +250°F |
| Wheel/tread Material | Thermoplastic Rubber |
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
CN03NRP100SWHK04 | Caster | €39.62 | |
 |
CN03NRP100TLHK04 | Caster | €38.20 | |
 |
CH05AMP125DLHK01 | Caster | €53.45 | |
 |
CH04AMP125SWHK01 | Caster | €40.90 | |
|
SS03AMX125SWHK01 | Casters | €122.10 | |
 |
SS03AMX125TLHK01 | Casters | €143.12 | |
|
SS04AMX125SWHK01 | Casters | €136.60 |
