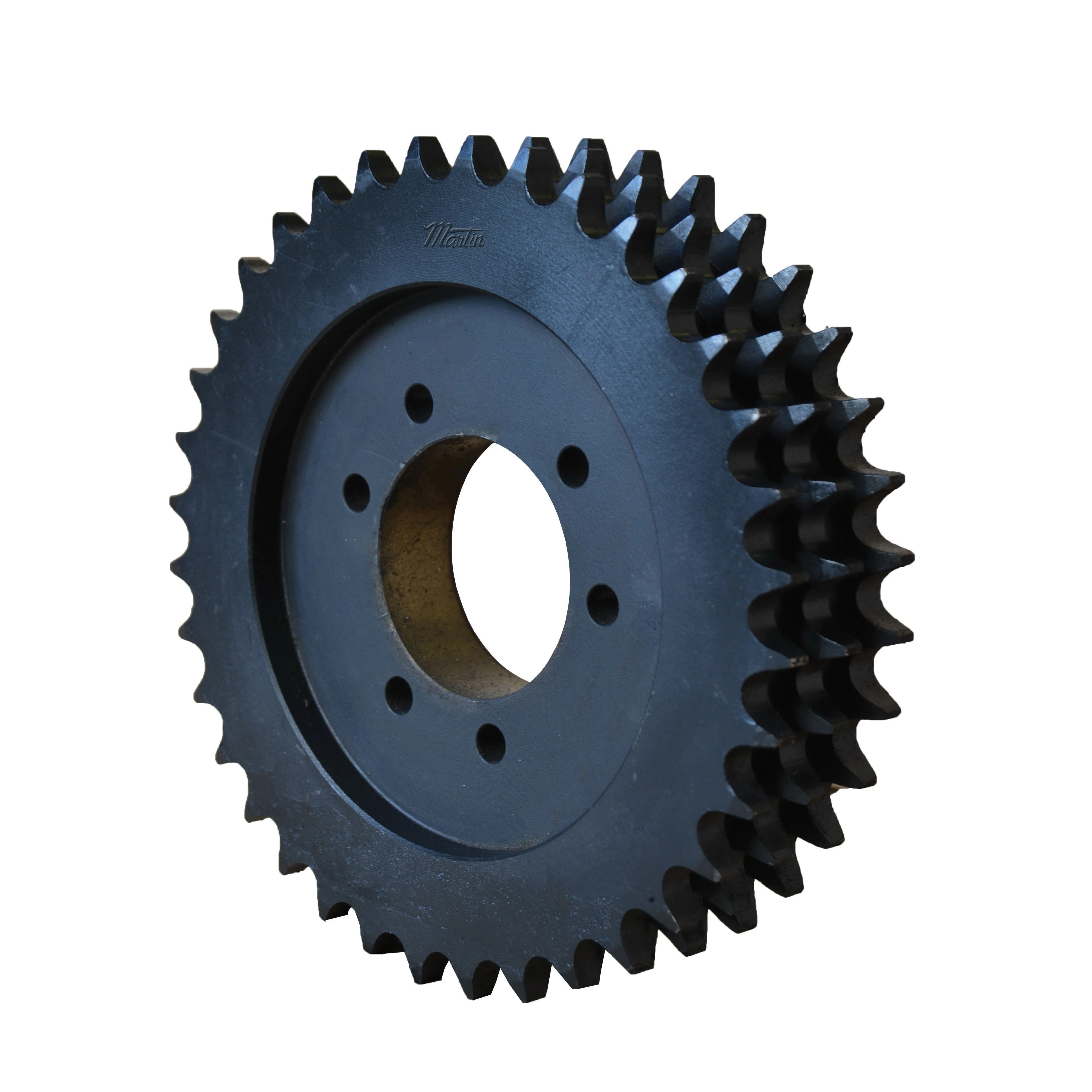

MARTIN SPROCKET E80F95 Sprocket, QD, 80 Chain, 95 Teeth, 30.245 Inch Pitch Dia., 30.828 Inch O.D., Steel
Get it by Tuesday, Jun 17
€2,863.89 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
Item | Roller Chain Sprocket |
Bore Type | Bushed Bore |
Bushing Part Number | F |
Chain Number | 80 |
Chain Pitch | 1" |
Construction | Solid |
For Chain Number | 80 |
For Chain Pitch | 1" |
Hub Configuration | A |
Hub Outside Dia. | 7" |
Individually Packaged | No |
Length Through Bore | 2 1/2" |
Material | Steel |
Max. Bore Size | 4" |
Min. Bore Size | 1" |
Number Of Chain Rows | 3 |
Number Of Teeth | 95 |
Outside Dia. | 30.828" |
Pitch Dia. | 30.245" |
Single Strand Tooth Thickness | 0.557" |
Storage Dimension Height | 2.86" |
Storage Dimension Length | 30.828" |
Storage Dimension Width | 30.828" |
Weight | 194 lbs. |
Ship weight (kg) | 87.3 |
Ship height (cm) | 7.26 |
Ship length (cm) | 78.31 |
Ship width (cm) | 78.31 |
